Installing Spade/Banana connectors

[jenson]

dear all, i have couple of bare wire speaker cables that can perhaps use a banana/spade terminal for ease of execution...anyone that i can send it to? what spade/banana connector is recommended..
speaker cable 1 - by Murthy's its the one where the cable core is free from the insulation and freely moves.
Speaker Cable 2 - Belden..don't recollect the model number...grey outer with balck and white inner cable.



[keith_correa]

speaker cable 1 - by Murthy's its the one where the cable core is free from the insulation and freely moves.

Can you post a pic of this cable end please? Would really like to see what this looks like.

Speaker Cable 2 - Belden..don't recollect the model number...grey outer with balck and white inner cable.

This one? https://theaudiocrafts.com/belden-8477-speaker-cable



[jenson]

Can you post a pic of this cable end please? Would really like to see what this looks like.


This one? https://theaudiocrafts.com/belden-8477-speaker-cable

Hi Keith, that's the belden cable, yes.

ill post a video by tomorrow on cable by Murthy's



[sachinchavan 15865]

dear all, i have couple of bare wire speaker cables that can perhaps use a banana/spade terminal for ease of execution...anyone that i can send it to? what spade/banana connector is recommended..
speaker cable 1 - by Murthy's its the one where the cable core is free from the insulation and freely moves.
Speaker Cable 2 - Belden..don't recollect the model number...grey outer with balck and white inner cable.

I have installed banana plugs on my Belden speaker cables (8477-8471 combo) myself. These plugs have two screws, you can put the peeled wire ends inside the barrel of the plug and tighten the screws, an easy DIY job. I got these very VFM plugs from Amazon and they do the job well (ensure a tight fit at both ends).

Amazon.in



[samml]

I have installed banana plugs on my Belden speaker cables (8477-8471 combo) myself. These plugs have two screws, you can put the peeled wire ends inside the barrel of the plug and tighten the screws, an easy DIY job. I got these very VFM plugs from Amazon and they do the job well (ensure a tight fit at both ends).

Amazon.in

Dear Sachin,
Can you pls suggest me the correct type and size of banana connector for my amplifiers and speaker?

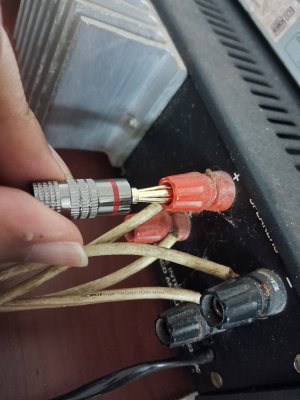

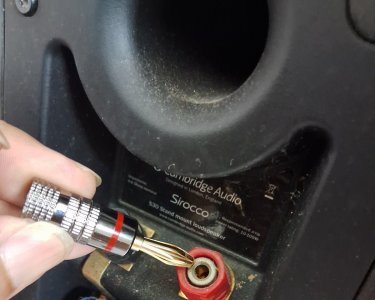

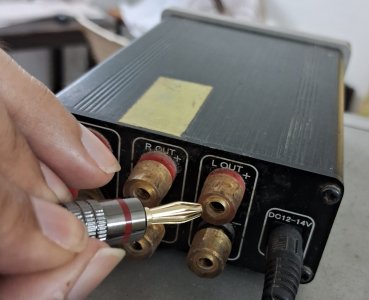

Bought 4mm ones from Amazon ..but they could not be inserted...see the pics

Returning the items for the 2nd time


Thanks in advance

Amplifiers-Norge 2060 & Topping tp 20
Speaker-Cambridge Audio S30



[sachinchavan 15865]

Dear Sachin,
Can you pls suggest me the correct type and size of banana connector for my amplifiers and speaker?

Bought 4mm ones from Amazon ..but they could not be inserted...see the pics

Returning the items for the 2nd time


Thanks in advanceView attachment 86631View attachment 86632View attachment 86633

Amplifiers-Norge 2060 & Topping tp 20
Speaker-Cambridge Audio S30

I use these with good effect. They look similar, but not identical to the ones in your pics. I can’t say whether they’d fit your amp’s posts.

https://amzn.in/d/3ZZMSP4



[RRR]

Dear Sachin,
Can you pls suggest me the correct type and size of banana connector for my amplifiers and speaker?

Bought 4mm ones from Amazon ..but they could not be inserted...see the pics

Returning the items for the 2nd time


Thanks in advanceView attachment 86631View attachment 86632View attachment 86633

Amplifiers-Norge 2060 & Topping tp 20
Speaker-Cambridge Audio S

Don't see any reason why it does not fit both... the amp and speaker.
It may be tight initially and will require some force. Just hold the amp and push in a little till the springs compress.
Hope this helps...



[mbhangui]

Dear Sachin,
Can you pls suggest me the correct type and size of banana connector for my amplifiers and speaker?

Bought 4mm ones from Amazon ..but they could not be inserted...see the pics

Returning the items for the 2nd time


Thanks in advanceView attachment 86631View attachment 86632View attachment 86633

Amplifiers-Norge 2060 & Topping tp 20
Speaker-Cambridge Audio S30

You have to apply force and push it. These connectors are correct.



[Shammi Dang]

Dear Sachin,
Can you pls suggest me the correct type and size of banana connector for my amplifiers and speaker?

Bought 4mm ones from Amazon ..but they could not be inserted...see the pics

Returning the items for the 2nd time


Thanks in advanceView attachment 86631View attachment 86632View attachment 86633

Amplifiers-Norge 2060 & Topping tp 20
Speaker-Cambridge Audio S30

The banana insert point at the back of norge is small and I am facing the same problem but as my amp is at one constant place the plugs do not get disturbed. I an using a MX plug which is similar to the one that is shown in the picture. Check at Hifimart site there is one model in pink and black coluur that has different locking mechanism. I think it is sold by hifimart on behalf of sound foundation. If you can get a similar model it will fit properly. I is called "Spring fit grip".



[sachinchavan 15865]

Yes. There are two kinds of banana plugs - ones that are springy which you just press in and the other where you turn a screw to tighten them. I’ve always found the latter gets loose after a while, disturbing the connection. But the springy ones remain snug.
