k-silk preamp and amplifier.. Diy silkscreen method

kaushik

Well-Known Member
Joined
Mar 3, 2008
Messages
2,561
Points
113
Location
Bangalore
When it comes to diy proto at home u cannot do white silk screen that easily.

Here is my method.

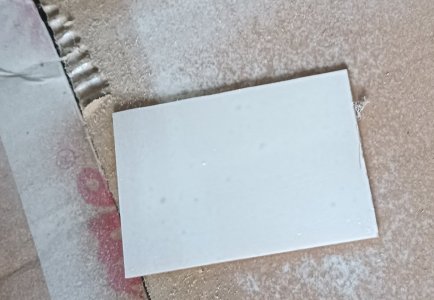

1) paint and dry pcb top
2) use acetone /nail polish remover and transfer inverse of top layer, flipped horizontal

3) remove the paper in water

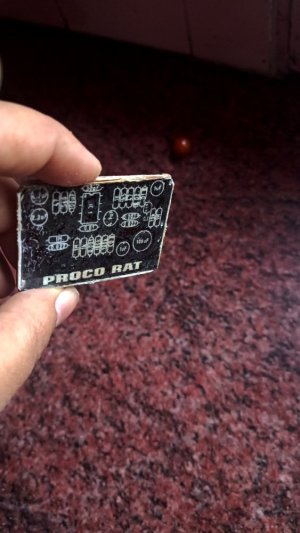

The pic shows one pcb... I am sure we can perfect it even more.


Specially if u use good heat transfer paper





Attachments

  • IMG_20230318_145819.jpg
    87.6 KB · Views: 25
