New power amp modules:

[hydrovac]

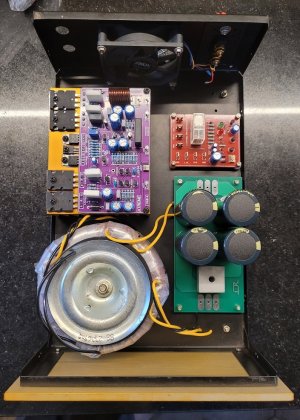

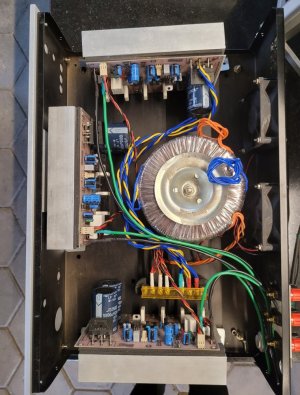

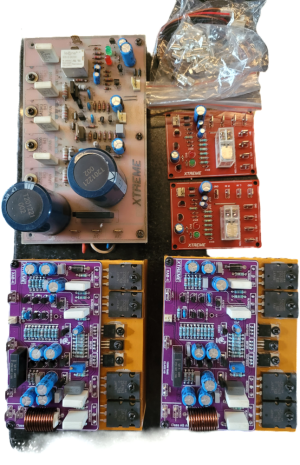

Building couple of power amps with new modules:

200W @ 8ohm three channel amp and 100WPC mono blocks.



[hydrovac]

.



[hydrovac]

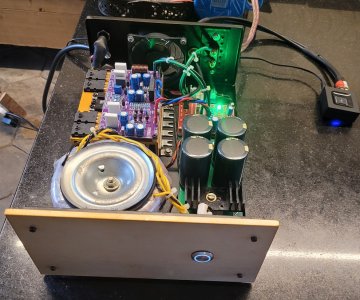

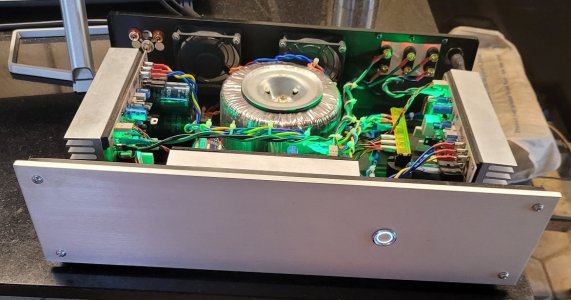

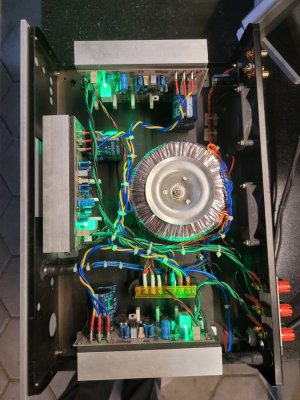

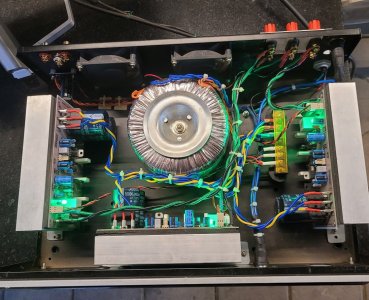

3 channel power amp.



[hydrovac]

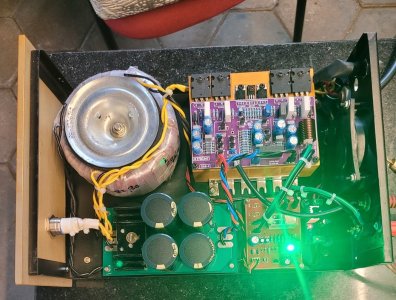

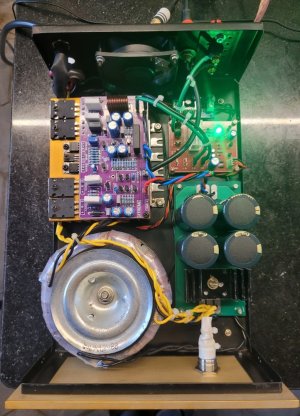

Power switch, RCA socket, hook up wiring completed... powered and checked the voltages. Don't have a proper coaxial signal cable.
The dual cooling fans were creating a racket on 0-12V... so provided a 0-6v psu, much quiet now.





...



[hydrovac]

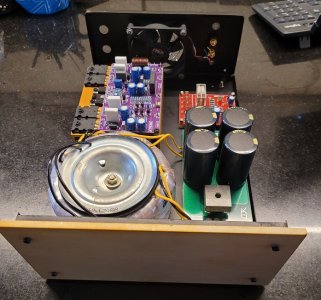

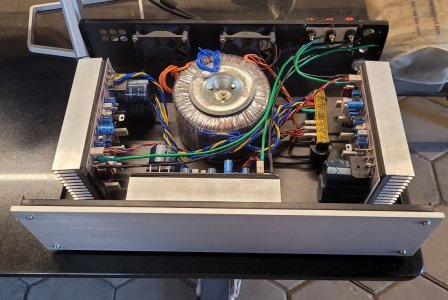

100 Watt mono blocks build.







...



[hydrovac]

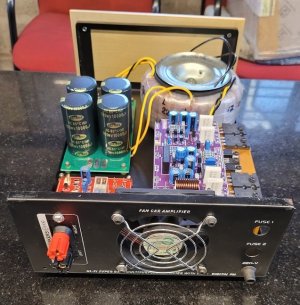

Power switch, Fuse, input RCA socket, 6 Volt power supply for fan, speaker protection module and wiring completed... tested with Logitech Bluetooth. Sounding clean...





...



[maverick101]

Hey!..nicely build !..i have been following that Xtreme audio India boards as well..but cant seem to find any spec sheet for that Class AB board do you have any tech specs for it?!



[hydrovac]

Thanks!
Pl ping Rahul of IXA for any details.

...
