Sub Crossover for Marantz Model 30 Stereo Amplifier?

[nitinvaid20]

Hello Everyone
From past almost a year i was using AVR Marantz SR7015 for listening music along with watching movies but recently i decided to get Dedicated Stereo AMP
Before buying this Model 30 AMP i was in touch with JL AUdio Team as i am using JL AUDIO E112 Sub so i asked them will this amp would be good for there subs as this does not have dedicated sub port the replied to me

"The Marantz Model 30 would be an excellent choice for your e112. It is one of the few integrated amplifiers that has BOTH the stereo preamp outputs and the stereo power amp inputs. This allows you to take full advantage of the e112's Linkwitz-Riley 24dB per octave two-way crossover"

Basically they asked me to use Model 30 Preouts left and right to inputs of E112 SUB and from E112 Line out left and right to Power Amp In of Model 30from which i
understood sub will do the cross over so that my main speakers wont be getting low freq means i can play more loud music without distortion.
But when i got the setup it was not working i tried and nothing then it seems My Model 30 Does not supports pre outs and power amp in at same time so no cross over for me or i am doing something wrong please let me know any alternatives to do the cross over so that my main speakers Martin Logan 35 XTI wont get full range

Streamer i am using is Cambridge Audio CXN
And yes to test JL Audio theory about there sub cross over what i did
CXN audio out to JL Audio SUB line in
then Line out of SUB to Model 30 Inputs
and yes speakers were not getting low freq anymore
But that connection doesnt feels right to me so not using this one



[ssf]

Basically they asked me to use Model 30 Preouts left and right to inputs of E112 SUB and from E112 Line out left and right to Power Amp In of Model 30

Am a bit confused. Let me first of all state that I have not connected something like this before but the recommendation to connect the line out to the Power Amp in sounds strange. What if the Stereo amp does not have a power amp in ? Shouldn't the line out from the sub go into one of the inputs of the marantz like CD or Line in 1 or Line in 2 ? The inputs are where the Marantz is expecting a signal to amplify and send to the speakers, not at the Power Amp In of the Marantz. Marantz expects a Power Amp to be connected at the Power Amp in. Let me again state that I never tired this earlier and try the above recommendation after getting it verified.



[ssf]

Am a bit confused. Let me first of all state that I have not connected something like this before but the recommendation to connect the line out to the Power Amp in sounds strange. What if the Stereo amp does not have a power amp in ? Shouldn't the line out from the sub go into one of the inputs of the marantz like CD or Line in 1 or Line in 2 ? The inputs are where the Marantz is expecting a signal to amplify and send to the speakers, not at the Power Amp In of the Marantz. Marantz expects a Power Amp to be connected at the Power Amp in. Let me again state that I never tired this earlier and try the above recommendation after getting it verified.

On my way to work, I realized that the Marantz had both pre out and pre in and that if both are used then it would not work. Even if it did, it would need a volume control somewhere in the chain or trouble.

Wonders if a source can directly be connected to the line in of the sub and take a line out to the inputs of the amp.

Edit: Just read that this has already been tried by the OP

Nonetheless, this is the first time I am coming across this kind of connectivity and I did find it interesting.



[aeroash]

Marantz expects a Power Amp to be connected at the Power Amp in.

In Pre-Out mode the device will work exclusively as a preamp and a power amp has to be connected to this.

In Power-In mode the device will behave purely as a power amp. A preamp has to be fed to these inputs.

The Line-out in the JL Audio can also be used to daisy chain multiple subwoofers.



[aeroash]

On my way to work, I realized that the Marantz had both pre out and pre in

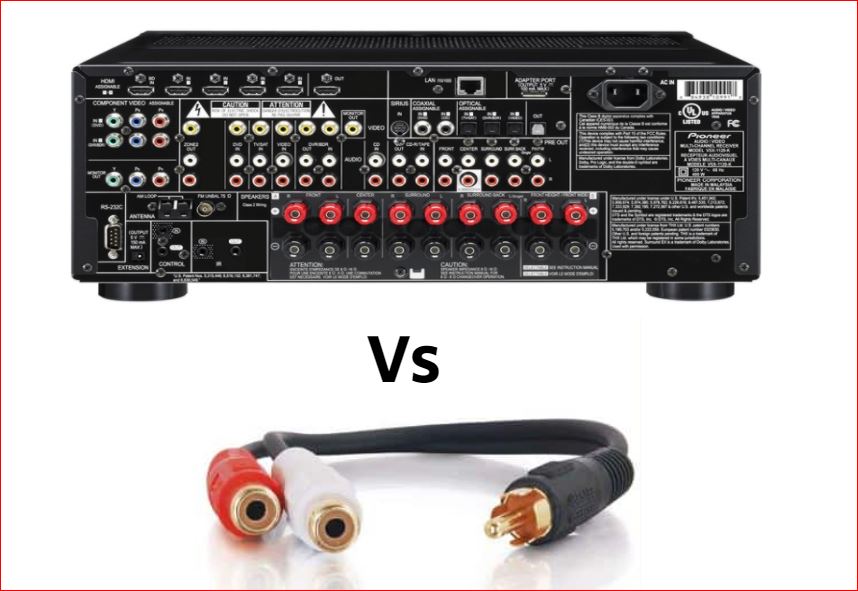

Pre Out Vs Line Out - Find the Difference?

Every user finds it difficult to set up an audio system properly. This is because there are too many components and every component has multiple ports that need to be connected properly for the audio system to work perfectly. If you check the receiver, you will come across two out ports namely...

www.electronicshub.org



[ssf]

In Pre-Out mode the device will work exclusively as a preamp and a power amp has to be connected to this.

In Power-In mode the device will behave purely as a power amp. A preamp has to be fed to these inputs.

The Line-out in the JL Audio can also be used to daisy chain multiple subwoofers.

Pre Out Vs Line Out - Find the Difference?

Every user finds it difficult to set up an audio system properly. This is because there are too many components and every component has multiple ports that need to be connected properly for the audio system to work perfectly. If you check the receiver, you will come across two out ports namely...

www.electronicshub.org

Sir,

I was just about to tag you to the thread. Any solution to the OP ?



[aeroash]

Sir,

I was just about to tag you to the thread. Any solution to the OP ?

Connecting the streamer to his subwoofer and line out to his Marantz is the solution.
