Audio setup for Kushaq!

[air870]

How much did the damping set you back? I am considering the same for my Carens before upgrading the stock speakers.

I ended up paying Rs 16000 for the Morel s. Underseat, dicky



[arj]

I ended up paying Rs 16000 for the Morel s. Underseat, dicky

16K for the morels + damping ? arent the morels themselves 30K ?



[air870]

16K for the morels + damping ? arent the morels themselves 30K ?

Morel ACUDAMP 221.10 2.1mm ( 10 sheets) Rs 8990. This was a reply to the cost of dampening. So 16K material + labour. Not Morel speakers



[air870]

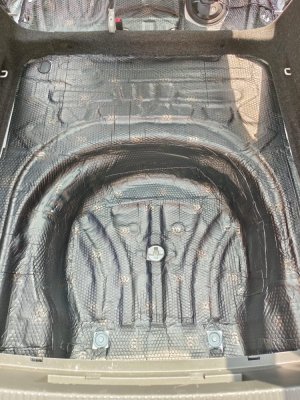

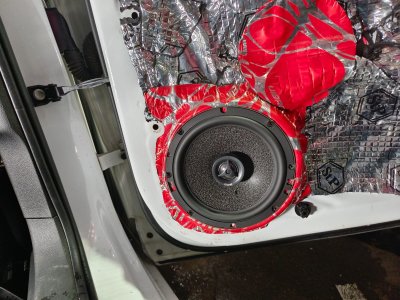

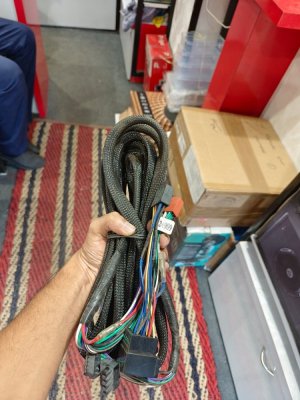

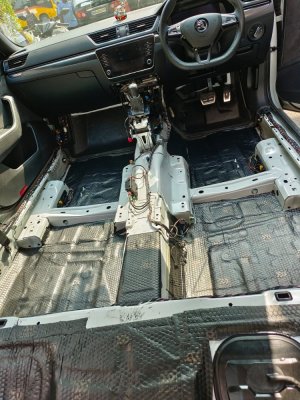

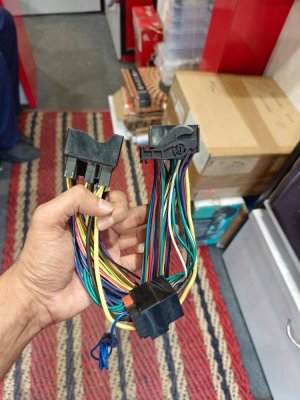

Some pics of the install



[Sivasathya]

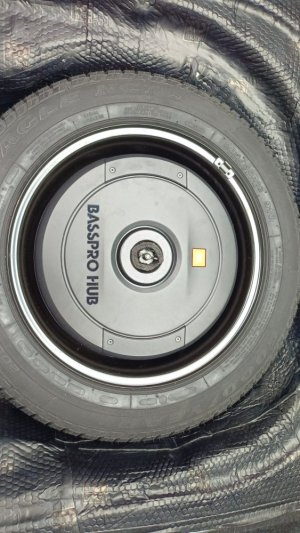

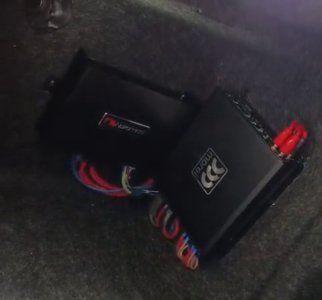

Factory HU, alpine DSP AMP, Morel components ( front ), stock (rear), jbl sub ( in spare tyre).

Hi I am having skoda Slavia 1.5 dsg , I am planning to use dsp amp and active three way set up in the front.
I would like to know which models you have used and how is it



[air870]

Hi I am having skoda Slavia 1.5 dsg , I am planning to use dsp amp and active three way set up in the front.
I would like to know which models you have used and how is it

Dsp is Nakamichi NDSK 4285 AU.
AMP is Morel MPD4.100.
The wiring loom ( original) on my car was for a two way component set up, ( I presume its the same for your Slavia). So be prepared to rewire if you intend to go for the 3 way setup ( warranty issues? ).
My two way front components ( Morel Virtus 602) ,rear coaxial ( Morel Maximo 6.5) ,Amp, Dsp, JBL sub ( Bass pro) with the stock headunit sounds good. But you do need the dsp to be tuned by a proficient tech ( not by ear but RTA)



[Sivasathya]

Dsp is Nakamichi NDSK 4285 AU.
AMP is Morel MPD4.100.
The wiring loom ( original) on my car was for a two way component set up, ( I presume its the same for your Slavia). So be prepared to rewire if you intend to go for the 3 way setup ( warranty issues? ).
My two way front components ( Morel Virtus 602) ,rear coaxial ( Morel Maximo 6.5) ,Amp, Dsp, JBL sub ( Bass pro) with the stock headunit sounds good. But you do need the dsp to be tuned by a proficient tech ( not by ear but RTA)

Thank you very much for the detailed reply. In your set up -I have a few doubts - sorry if the questions are noob.
You have a nakamichi ndsk- that’s is a dsp amp
And you have 4 channel morel amp -
How have you configured - ? Is it for front you have used nakamichi pre out and morel as power amp ?



[air870]

Thank you very much for the detailed reply. In your set up -I have a few doubts - sorry if the questions are noob.
You have a nakamichi ndsk- that’s is a dsp amp
And you have 4 channel morel amp -
How have you configured - ? Is it for front you have used nakamichi pre out and morel as power amp ?

Hey, no problem, the nakamichi s power was insufficient to adequately drive my speakers so it is purely running as a DSP, signal is amplified by the Morel ,4 channel, two for the front components and two for the rear door coaxial.



[Yuvaraj_N]

In my car I did double damping with gold 2.2mm

Is double damping really required or one layer would just suffice on a car like Honda City?



[shuv]

Is double damping really required or one layer would just suffice on a car like Honda City?

Depends on what you expect from the damping. To prevent rattles from the doors, one should suffice. Start with one, add another layer if you feel the need.

P.S I've never done the entire car. Only doors and boot lid.



[arj]

Is double damping really required or one layer would just suffice on a car like Honda City?

Double is needed only on doors since it actually has 2 surfaces. Especially on Honda which has a relatively lighter door



[Sivasathya]

Hey, no problem, the nakamichi s power was insufficient to adequately drive my speakers so it is purely running as a DSP, signal is amplified by the Morel ,4 channel, two for the front components and two for the rear door coaxial.

Thank you very much for the reply.

Hey, no problem, the nakamichi s power was insufficient to adequately drive my speakers so it is purely running as a DSP, signal is amplified by the Morel ,4 channel, two for the front components and two for the rear door coaxial.



[Arshish1612]

Hi Folks..

I have a Helix DSP.2 lying around, and I want to install it in my 2022 Skoda 1.0. I want to try and keep the HU & the Speaker stock for now and just integrate the DSP before the Stock AMP.

Does anyone have a Pin Diagram of the Kushaq stock AMP? Also, any inputs on the connector / adapters I would need will be really helpful as I don't want to cut / splice anything
