IndianEars
Well-Known Member
Yes, you can wire your 1 pole 12 way rotary switch for your application ...but it will be sufficient for only 1 channel.
If u plan to use it for stereo, it will not work.
If you clarify, I can post a wiring diagram.
DIY input selector with ON-OFF-ON switch question.
- Thread starter sim_tcr
- Start date
Yes, you can wire your 1 pole 12 way rotary switch for your application ...but it will be sufficient for only 1 channel.
If u plan to use it for stereo, it will not work.
If you clarify, I can post a wiring diagram.
I looked at the Amazon one which you linked, it has 12 pin outer and 1 pin in center, that is the same style which I already have,
so how is it different from what I have already?
The picture isn't correct. There are four terminals at position A, B, C and D. I'm using this in my selector switch.
I need it for stereo amplifier. I would still appreciate if you can post the wiring diagram for mono.
I have another one of same type, so may be I can use that to wire other channel, so two knobs (one for left channel and other for right) to turn if I have to switch input.
Got it.
Are you able to please provide a wiring diagram for it for 3 inputs (stereo) and 1 output (stereo) ?
Also what do you think about https://www.gtechaudios.com/index.php?route=product/product&product_id=82?
What is confusing above is that there are 4 relays and only 3 pairs of RCA sockets. The colours are for Component video. Better clarify with gtech audio. I will provide the wiring diagram later as I will have to draw it and take a photo and I'm feeling lazy right now. But will do it tomorrow if no one else responds. Maybe I will open my selector box and show the wiring.
Here is another one from audiocrafts
4 Way Stereo Audio Input Selector System - PBT Connections
theaudiocrafts.com

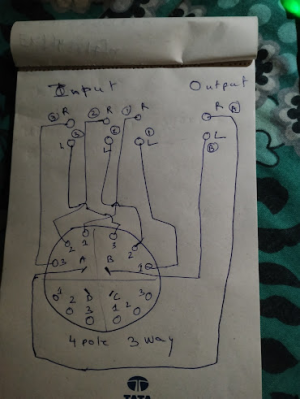

Ok. Just did a crude drawing. I have used a 4 pole switch of which only two poles have been used
Last edited:
ketansethi1987
Active Member
This is what I also use in my passive preamplifier. It's 2 pole-5way selector switch.What is confusing above is that there are 4 relays and only 3 pairs of RCA sockets. The colours are for Component video. Better clarify with gtech audio. I will provide the wiring diagram later as I will have to draw it and take a photo and I'm feeling lazy right now. But will do it tomorrow if no one else responds. Maybe I will open my selector box and show the wiring.
Here is another one from audiocrafts
4 Way Stereo Audio Input Selector System - PBT Connections
Ok. Just did a crude drawing. I have used a 4 pole switch of which only two poles have been used
View attachment 78102
I use to have a 5 way relay based switch with miniature Japanese relays, but I felt the associated diodes, and coil can affect the low-level input and went the passive switch method.
Last edited:
IndianEars
Well-Known Member
As mentioned, 1 switch each for mono & stereo is too cumbersome.

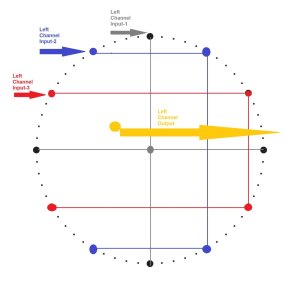

However, since you gave asked for a schematic... Given Below (for 1 channel) using yr existing switch.
Each of yr 3 inputs are shown in 3 different col;ours: Grey, Blue & red.
The Channel output is in yellow.
What is confusing above is that there are 4 relays and only 3 pairs of RCA sockets. The colours are for Component video. Better clarify with gtech audio. I will provide the wiring diagram later as I will have to draw it and take a photo and I'm feeling lazy right now. But will do it tomorrow if no one else responds. Maybe I will open my selector box and show the wiring.
Here is another one from audiocrafts
4 Way Stereo Audio Input Selector System - PBT Connections
Ok. Just did a crude drawing. I have used a 4 pole switch of which only two poles have been used
View attachment 78102
I got the switch.

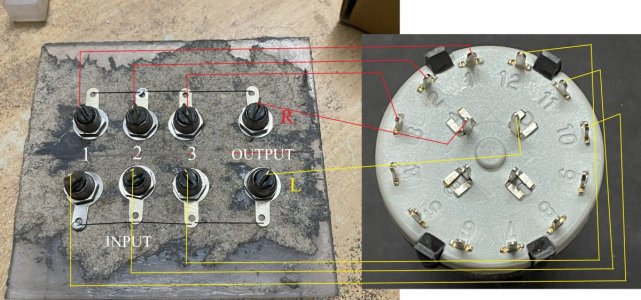

Are you able to please review below diagram?
Its the ground I am bit confused.
Where should ground from RCA be going?
Shouldn't ground be going to switch as well?
Good work done by you in understanding the switch. Kudos
Mostly ground is common to both left and right channels. So you don't have to do anything other than connecting the ground using a single straight bare copper wire and solder it across all 8 terminals.
You have two spare poles. One of them can be used to light up LED indicator for each input.
Thank you
Led for selected input? Does that mean, the switch also need separate power?
Just so that you know, this thing I am building stays as a separate unit 2 feet away from amplifier.
forget the led thing I said. Why complicate it? Yes it will require power for the led if you want to do that. Bringing a wire with power near the switch will also introduce noise. Forget that I ever told you to light up the ledThank you
Led for selected input? Does that mean, the switch also need separate power?
Just so that you know, this thing I am building stays as a separate unit 2 feet away from amplifier.
I wired and tested.
Every thing works.
Small minor issue I found is, 3rd input's right audio is slightly bleeding over 1st input right audio (when 1st input is selected, and 3rd input audio is playing in background). I think this is a known issue?
To make sure its not selector issue, I used multimeter and checked for continuity between
1st - left output and right input and made sure that no beeps when non selected ones are touched
2nd - right output and right input and made sure that no beeps when non selected ones are touched
Every thing works.
Small minor issue I found is, 3rd input's right audio is slightly bleeding over 1st input right audio (when 1st input is selected, and 3rd input audio is playing in background). I think this is a known issue?
To make sure its not selector issue, I used multimeter and checked for continuity between
1st - left output and right input and made sure that no beeps when non selected ones are touched
2nd - right output and right input and made sure that no beeps when non selected ones are touched
Any multimeter which uses DC for testing continuity will never show the leakage. This leakage will always happen. The three wires going from the switch selector become like a capacitor with each other. A capacitor will always allow non-dc current to pass through. Further the distance between the wires, lesser will be the leakage. Inside the switch too, the terminals are close to each other and there will be minor leakage happening there too. The capacitance formed between the wires and terminals will be picofarads
https://store.turbify.net/glass-ware/inseswandpcb.html
Check this out. The best option though is to use powered 4PDT relays.
Check this out. The best option though is to use powered 4PDT relays.
