I love fixing things and have difficulties finding schematics like NAD C 356 BEE power supply schematic

[darwinwandler]

I love fixing things and have difficulties finding schematics like NAD C 356 BEE power supply schematic



[efernand1]

I love fixing things and have difficulties finding schematics like NAD C 356 BEE power supply schematic

Hi,

Welcome to HFV.

I am sure you will find your experience here very enriching and enjoyable.

Make sure to visit the countless posts which is based on direct experience, technical knowledge and honest feedback.

If the post / response to you helps in any way, use the 'Like' button which is located at the right hand bottom of the post. This helps to build up positive reputation for the FM (Fellow Member).

Hope you have a great journey here!

All the best!



[mbhangui]

I love fixing things and have difficulties finding schematics like NAD C 356 BEE power supply schematic

The most knowledgeable in this forum, IMHO with NAD is @reubensm . Tagging him to get his attention.



[reubensm]

The most knowledgeable in this forum, IMHO with NAD is @reubensm . Tagging him to get his attention.

The NAD C356BEE service manual can be downloaded, without any cost implications from here. If you are unable to download the manual directly, kindly PM your email address and I'll mail you my copy.

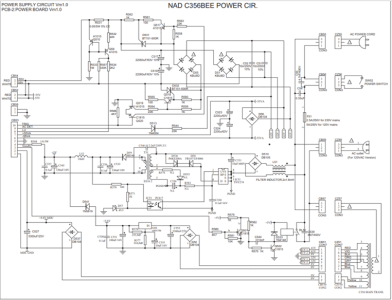

Here is an extract from page-15 of the 39-page comprehensive manual.
