That's a lamp connected to a proximity sensor. It lights up when I stand so that I can see around and not fall and stumble.What's that bell behind the TV doing?
Showcase your audio/video setup here!......
- Thread starter Anil kumar
- Start date
Vineethkumar01
Well-Known Member

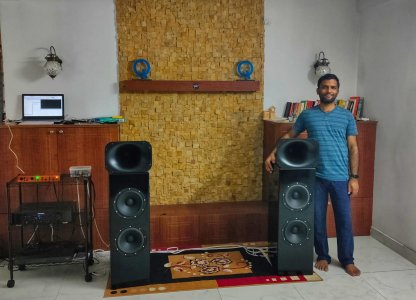

This is my system at the moment.
Just assembled my modular 3 way diy system. Pending polar measurements and crossover based on it. Drivers are dual SB acoustics Satori WO24P-8 woofers per side for bass. Current top module is Sb Audience Rosso 65CDN-T compression driver on a faital pro LTH142 horn. DSP crossover implementation using EQApo Software on PC and 6 channel audio interface. Marantz Pm 5005 drivers the woofers while Allo volt amp drives the compression drivers. Crossover at 1kHz at the moment and hence playing as a 2 way system currently.
For more details, see my thread here
www.hifivision.com
Just assembled my modular 3 way diy system. Pending polar measurements and crossover based on it. Drivers are dual SB acoustics Satori WO24P-8 woofers per side for bass. Current top module is Sb Audience Rosso 65CDN-T compression driver on a faital pro LTH142 horn. DSP crossover implementation using EQApo Software on PC and 6 channel audio interface. Marantz Pm 5005 drivers the woofers while Allo volt amp drives the compression drivers. Crossover at 1kHz at the moment and hence playing as a 2 way system currently.
For more details, see my thread here
A 3-way active crossover design study
It will be easier to dig-out the noise/hiss and other issues when you get from the 88dB to the 98dB woofer and re-level everything. If I might suggest anything, it's to not completely ignore how the driver sounds in the foam and w/o lining/damping/filling. Over time, those experiences will...
www.hifivision.com
Lovely setup and you have built those yourself. Commendable.This is my system at the moment.
View attachment 70186
Just assembled my modular 3 way diy system. Pending polar measurements and crossover based on it. Drivers are dual SB acoustics Satori WO24P-8 woofers per side for bass. Current top module is Sb Audience Rosso 65CDN-T compression driver on a faital pro LTH142 horn. DSP crossover implementation using EQApo Software on PC and 6 channel audio interface. Marantz Pm 5005 drivers the woofers while Allo volt amp drives the compression drivers. Crossover at 1kHz at the moment and hence playing as a 2 way system currently.
For more details, see my thread here
A 3-way active crossover design study
It will be easier to dig-out the noise/hiss and other issues when you get from the 88dB to the 98dB woofer and re-level everything. If I might suggest anything, it's to not completely ignore how the driver sounds in the foam and w/o lining/damping/filling. Over time, those experiences will...
What is the distance between the speakers and what distance do you sit away from the speakers. I'm trying experiments with my setup and want to know if there is any limitations on how close the speakers can get?
Vineethkumar01
Well-Known Member
Hi,
Thank you.
Currently it just avout 1.2m distance between the speakers. It is because i just assembled it and wanted to hear it for first time.
and I sit about 2.5 m away from the speakers.I will need to adjust placement and see what is the best separation between the speakers. This kind of short separation will definitely restrict the soundstage, especially becuase these are narrow dispersion horns in this speaker.

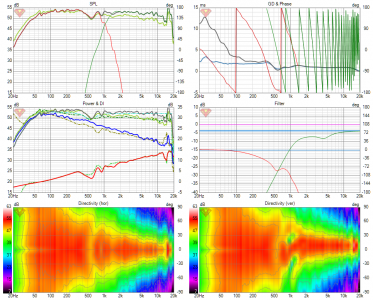

In general, the ideal separation may also depend on the polar radiation pattern (especially the horizontal) of the speaker and to some extent personal preferences and amount of room "treatment". In my case the current crossover resulted in sort of the following polar pattern with my prototype of this speaker with single woofer (based on upto 90 degree polar frequency response measurements)
With dual woofers here are the simulated (BEM simulations based) vertical (V_SPL) and horizontal (H_SPL) polar responses of my dual woofer set up.
Vertical polar response below
horizontal polar response below
Add to this the narrow radiation pattern of the horn and i would have to experiment with these a bit to get them to sound their best
I will have to measure frequency responses for any changes in crossover first. And then speaker placement and listening position changes and related experiments. There are also some general guidelines regarding placement of left and right speakers for a stereo setupWill do more experiments and update in my thread in coming days..
Thanks
Vineeth
Attachments
Last edited:
Yelamanchili manohar
Well-Known Member
Lovely looking build vineethThis is my system at the moment.
View attachment 70186
Just assembled my modular 3 way diy system. Pending polar measurements and crossover based on it. Drivers are dual SB acoustics Satori WO24P-8 woofers per side for bass. Current top module is Sb Audience Rosso 65CDN-T compression driver on a faital pro LTH142 horn. DSP crossover implementation using EQApo Software on PC and 6 channel audio interface. Marantz Pm 5005 drivers the woofers while Allo volt amp drives the compression drivers. Crossover at 1kHz at the moment and hence playing as a 2 way system currently.
For more details, see my thread here
A 3-way active crossover design study
It will be easier to dig-out the noise/hiss and other issues when you get from the 88dB to the 98dB woofer and re-level everything. If I might suggest anything, it's to not completely ignore how the driver sounds in the foam and w/o lining/damping/filling. Over time, those experiences will...
Going diy with active crossovers is something I've been planning for a long time. All the best
Vineethkumar01
Well-Known Member
Thanks a lot.Lovely looking build vineeth
Do it. The flexibility for adjustements and resulting sound quality is worth it in my opinion..Going diy with active crossovers is something I've been planning for a long time. All the best
balavignesh002
Well-Known Member

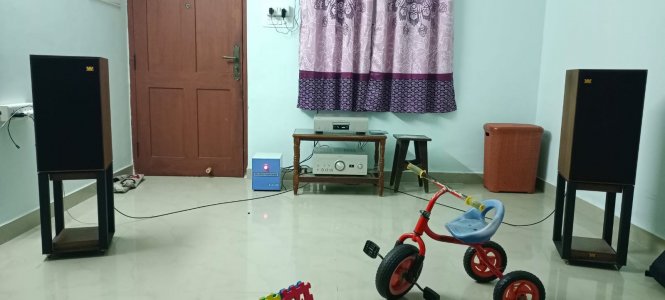

Well, thats my living room (12 x 24 feet) Audio setup. Love to keep 6 feet gap from the rear wall, and not have much gap on the side wall ( 1 feet max). prefer to listen 10 to 11 feet away from both speakers.
Source Denon DCD 2500NE
AMP Denon PMA 2500NE
Cables Mogami co-axial for RCA interconnect and Speaker connect.
Speaker Wharfedale Linton 85

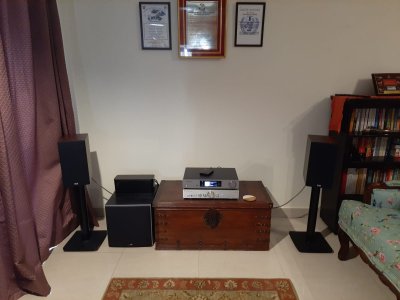

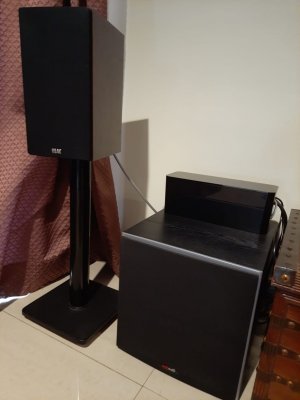

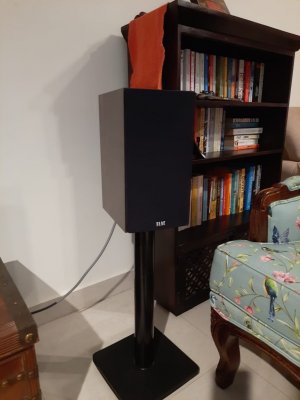

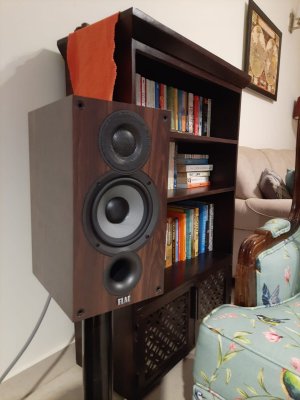

Just got the Elac Debut 2.0 B5.2 bookshelfs to replace my Wharfedale Diamond 121. It feels as if someone pulled open the curtains between me and the speakers. Will post a detailed review of the speakers after a while. For specs, Wharfedale 121s were 88db, 65Hz-20Khz, while Elacs are 86db, 46Hz-35KHz.

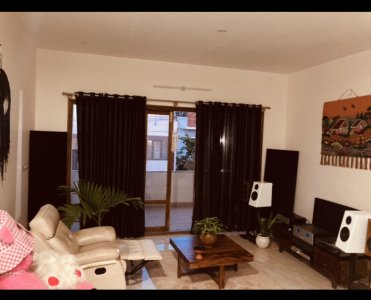

Moved my stereo to the 1st floor and set up a dedicated space. Now it’s me and gears and less fuss from the home ministry for cluttered cables
The Chain:
Speakers : Kairos by Late Mr. Jeff Bagby
Amp: Simple Stark ODNF
Pre : Pass HPA1 Clone
Dac : Soekris Rev 7
Streamer: Pi2Aes
Cables that I am using currently:
Speakers : Mogami 3103
IC’s : Mogami 2549
The Chain:
Speakers : Kairos by Late Mr. Jeff Bagby
Amp: Simple Stark ODNF
Pre : Pass HPA1 Clone
Dac : Soekris Rev 7
Streamer: Pi2Aes
Cables that I am using currently:
Speakers : Mogami 3103
IC’s : Mogami 2549
sandeepmohan
Well-Known Member
Lovely components that should last a lifetime.
You may want to to try a few things;
Get closer to the speakers.
Try pulling the speakers closer together. I can't visualize the room but they appear too far apart
balavignesh002
Well-Known Member
The room dimension is 12 x 24 feet. Its basically the living room. Earlier I had it in a different room 10 x 16, where i use to listen 6 feet away.
sandeepmohan
Well-Known Member

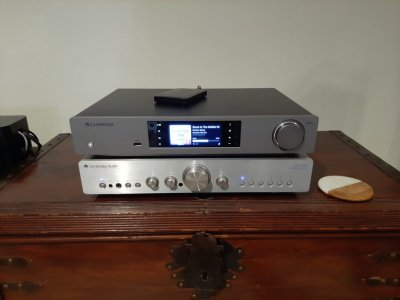

Nice streaming setup.
Wharfedale's are a hit or miss. They have some exceptional loudspeakers like the Linton's featured a few post above and the rest feel and sound like junk. The only thing is they look pretty and convincing at sight. Once you hear them, you wonder what on earth is going on. I have dropped several Wharfedale speakers after listening to them, even with the Interweb praising them. Either the standards of reviewers have gone down or everyone is being paid to say only good things. Among affordable British loudspeakers brands, I look at only B&W and KEF these days.
I agree. I have used Wharfedale 9.6 with Norge, and Marantz PM5004 earlier. Thereafter shifted to Boston Acoustics A26 bookshelf - the difference was visible. Now thinking of upgrading my amp from CA 351a to Acoustic Portrait Swara v2. Will audition them since I'm in Bangalore now.
Tagging @prozkater as he was looking for user feedback on the Wharfedale Diamond 12 series for his new setup.
That is a gem of a speaker. One of the most well rounded at any price point. Plays well with just about any genre. Never harsh even with poor recordings, yet never at a loss for excitement. The most VFM speaker I've ever had (got them for 14K brand new back in 2018).
Thanks for the tag, I will post my impression once the 12.2 arrive. Keeping my fingers
balavignesh002
Well-Known Member

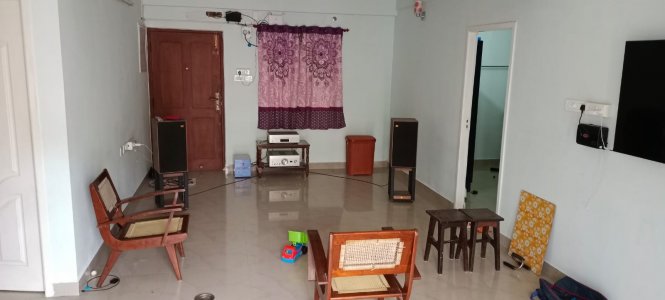

Here is a larger picture of the room. trust me the speakers disappears, and the the stage gets on the CDP.
Howz aurum cantus, im planning to buy 610 bookshelf, can i blindly go for it ?
Don't pull the trigger without an audition. The tweeter is quite big and unforgiving. Takes a while to settle down.
I'll play...its a small room.. Maybe 9 by 11...
photos.app.goo.gl
Cadence va 1.0 (20 watts version)
Cadence ARCA
Marantz SACD player
Second system
Modded spendor
Discrete dynamics amp and pre (100 watts version)
3 new items by Jenson Joseph
photos.app.goo.gl
Cadence va 1.0 (20 watts version)
Cadence ARCA
Marantz SACD player
Second system
Modded spendor
Discrete dynamics amp and pre (100 watts version)
Shammi Dang
Active Member
I Wanted to Know which Mogami speaker cable u are using. I edited my earlier query as I got the model no. from ur other message on this thread. Can u tell me the sound signature that you are getting. Is it suitable and a good match with these speakers (Wharfedale). Have u tried some other cable before, even inferior to the one you are having at present.
Last edited:
