Technics M6 Mk2 Cassette Deck-HELP🙏🏼

[availlyrics]

I have been trying really hard to fund the Light bulb Valtage and size for the

I have Technics SA380, capsule sized Bulbs works on 12VAC . I can see 3 bulbs but don't know if they are in series or parallel. If u want I can de-solder it and send it to you. With time their pins have corroded. Alternatively you can use LEDs



[Vin4life]

The Head looks little bit rusty due to storage First clean it with IPA 99% Then Take Autosol ASL_POL Metal Polish clean it with Q tips it will look shiny

Fully unscrew the front of switches 2 screws Remove ,Remove Remove 2 screws from PCB then remove Tab holding RCA wires You will get PCB out to get to the Playback switch

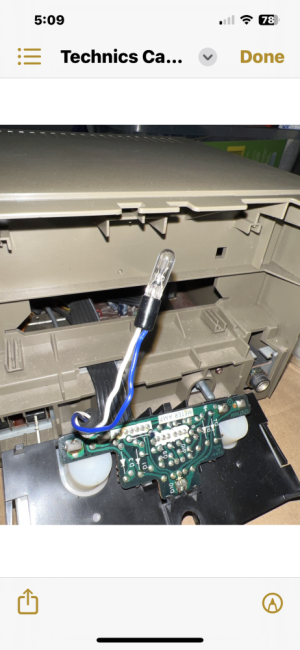

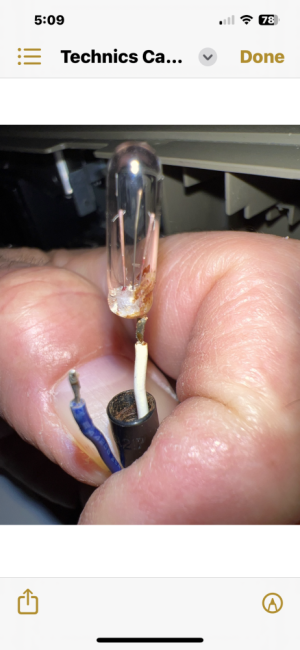

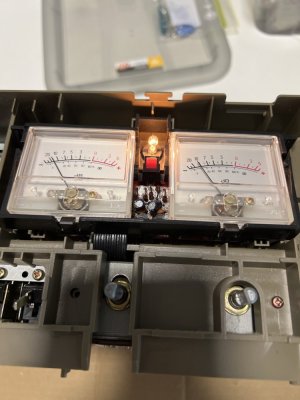

Use 6v 200mA Bulb in deck it comes with wires not 12v like shown picture

Hi Spanchal

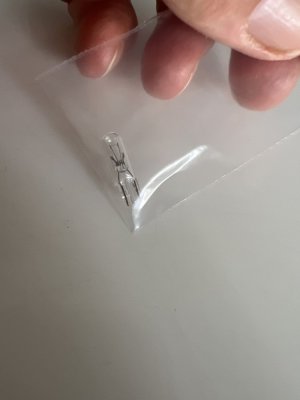

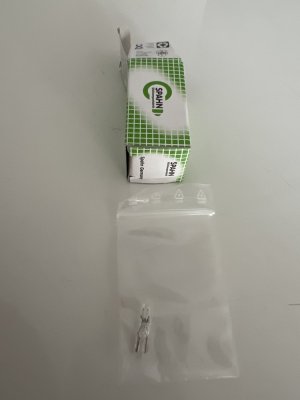

I received the Bulb and it didn’t come with wires !
See picture
It’s just 20c bulb they ,sell them on AliExpress with cables
I don’t know how i am going to connect this bulb
As it needs 5mm soket
Can the old one be pulled of from the socket ?



[spanchal]

Hi Spanchal
I received the Bulb and it didn’t come with wires !
See picture
It’s just 20c bulb they ,sell them on AliExpress with cables
I don’t know how i am going to connect this bulb
As it needs 5mm soket
Can the old one be pulled of from the socket ?

If the bulb fits in the old socket then TRY that ,If it doesn't fit then buy required socket Also you have option to take it to deck service mechanic to do the installation of bulb Actually the bulb comes with wire



[Vin4life]

If the bulb fits in the old socket then TRY that ,If it doesn't fit then buy required socket Also you have option to take it to deck service mechanic to do the installation of bulb Actually the bulb comes with wire

I can’t see any wire here it’s just a bulb ! That’s why i ordered it
I see how i go
I have no money for tech service
I just got the motor belt as well
I am not of a good health
I will try my best



[Vin4life]

Ok

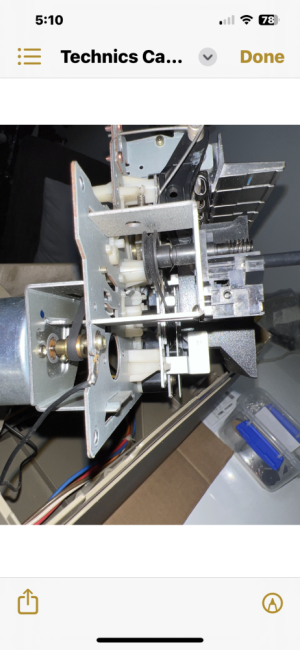

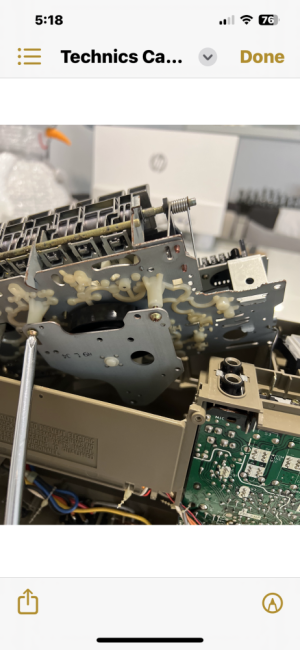

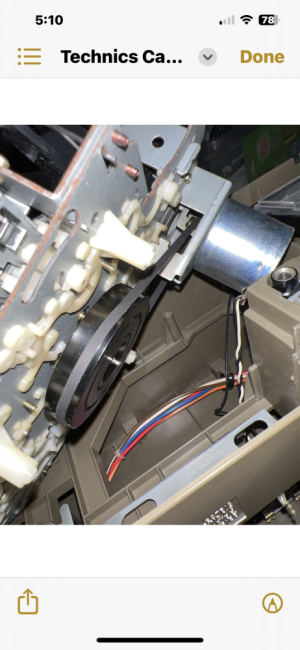

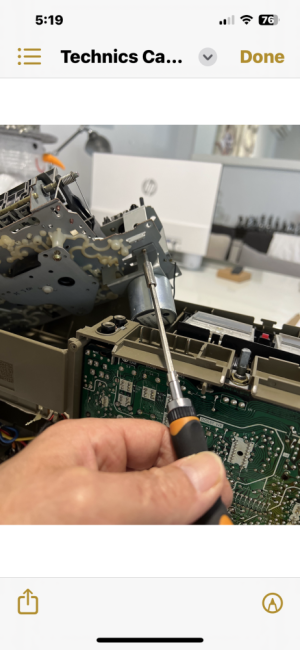

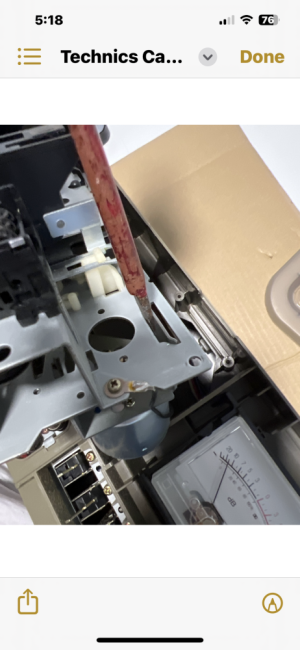

I replaced the belt

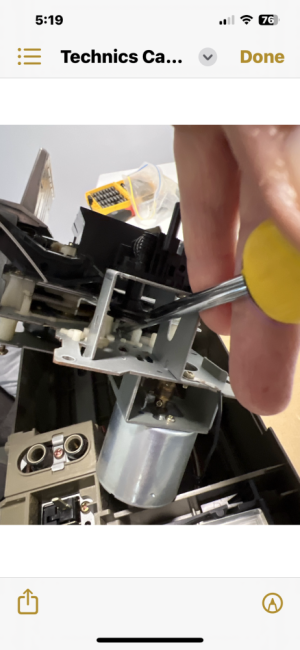

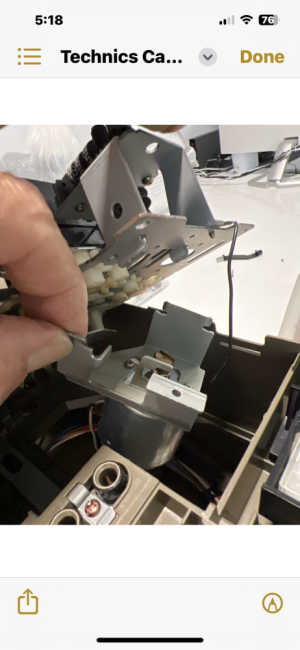

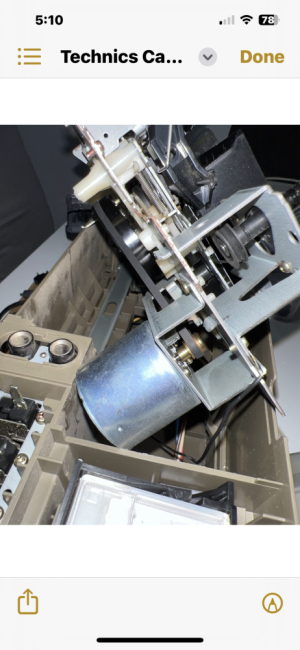

By removing motor x 1 screw and unclipping from plate

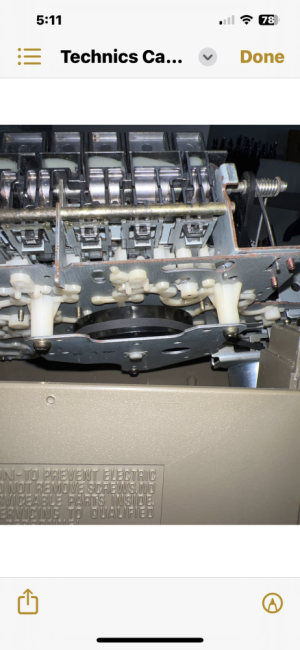

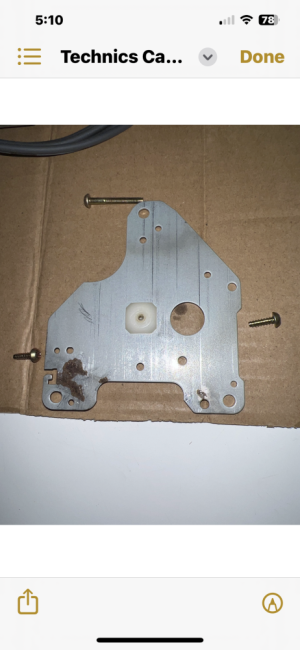

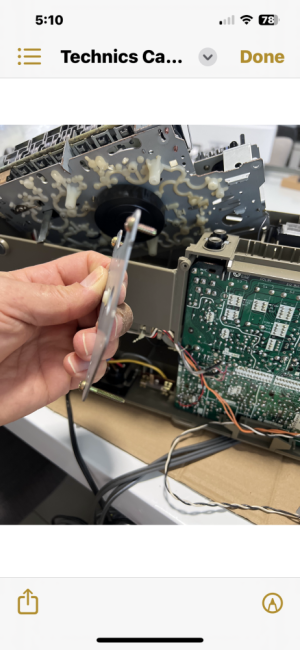

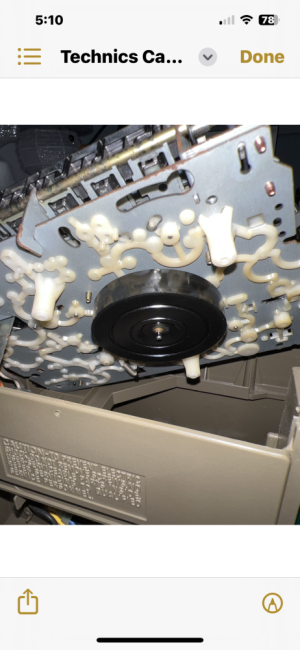

And unscrewing plate 3 x screws that holds the Big Wheel

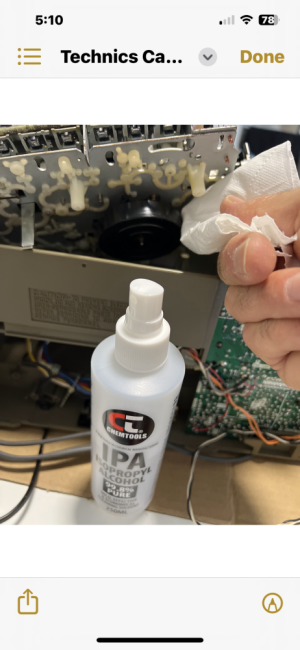

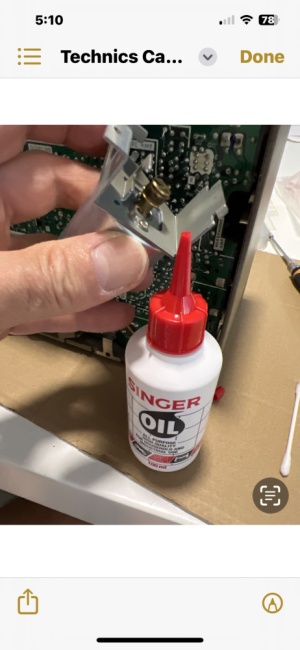

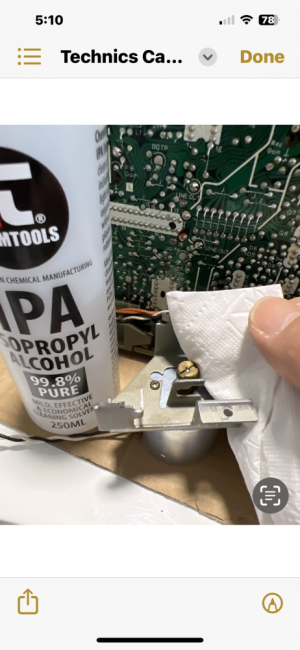

Oiled the motor with TT Sawing oil, and wiped all moving belt parts with IPA ,motor spindle,wheels,head,
I waited to dry for about 10min
And put it all together

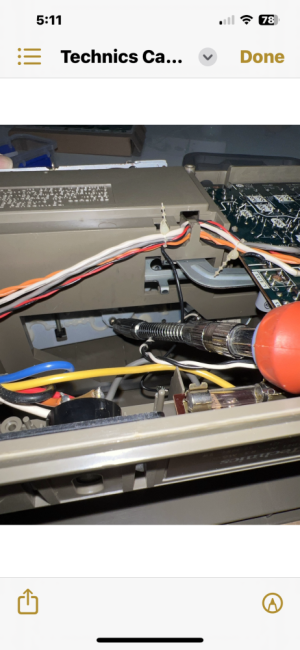

Its very fiddle without unsoldering cables but it is doable
By using deferent types of philips screwdrivers and loosening some of the wire so you can angle the main unit to get to screws

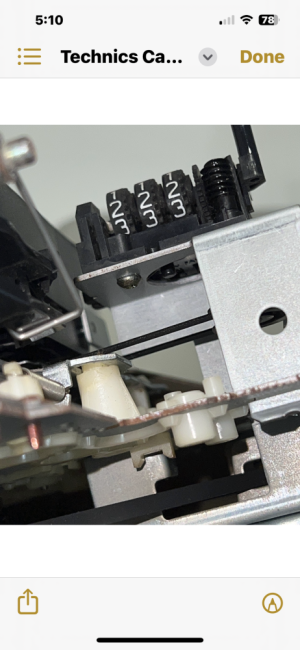

I attached hips of photos
If anyone needs more , just let me know

I plugged it in and actually sounds really goodSo happy
VU Meters are warking, thank you

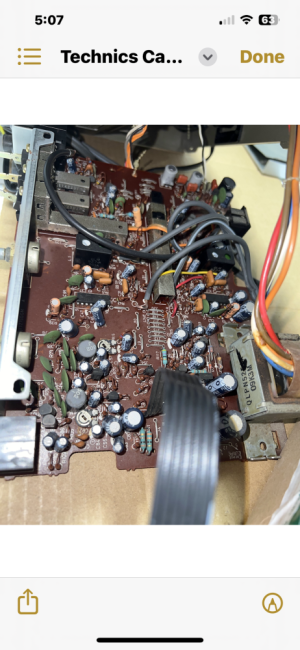

Now i want to remove the main PCB board so i can lubricate the main switch as per” spanchat “advice
But it is so fiddle and is running good , i am contemplating ?!
What you recon Snapchat ?

Defiantly no thought was put in for future servicing , when they were designing this unit
As it could of been such a simple thing to do if just things came out more simpler !

Thank you to all for the help ,it is greatly appreciated



[Vin4life]

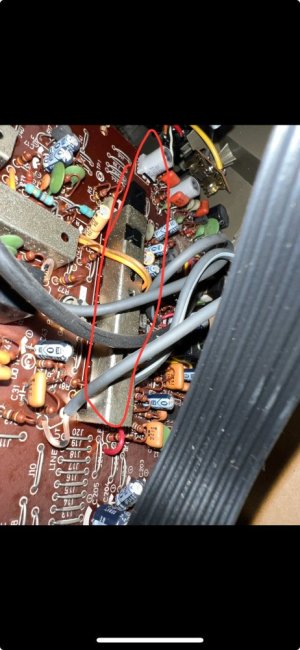

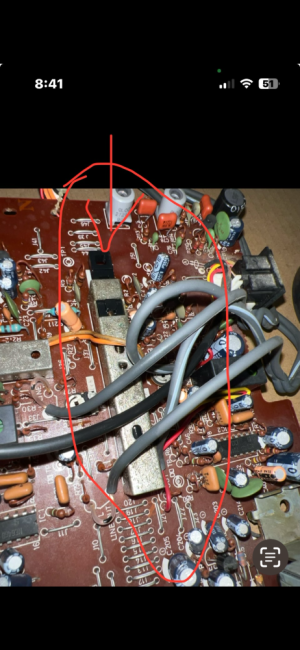

Is this the
Playback Switch
Do i just spray sone DioxIT in the holes ?



[Vin4life]

Ok
I fallowed through as per
Snapchal
Lubricated Record switch and all pods with DioxIT
See pics
And the deck playing really good
Surprisingly has such a deep bass
It’s like wow
I hope that’s normal for this Deck


Now i have my whole stereo system all up and running
Pretty happy with it
It’s a beauty

Thank you so much Snapchal



[Vin4life]

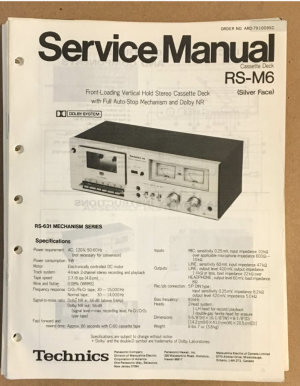

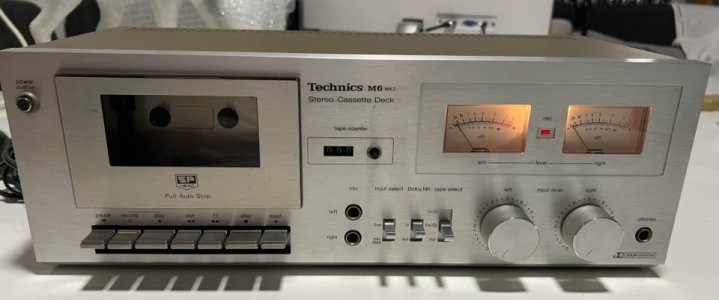

Technics RS M6-Mk2
Cassette Deck



[MarvinG]

Thank you so much for that
I got Autosol Aluminium polish
Disent do much
I think i have to get the Autosol Gold one

I have been trying really hard to fund the Light bulb Valtage and size for the
Technics SU-Z2 VU meters
Is it possible to help me ,please find that

As i have ordered everything else accept that

Hi there Vin 4 life I am also looking for the same vu lamps for z2 amp. I ended up buying some leds but they were too big. I think that they might be 8v. I cannot find the actual part number from technics spec. There is someone selling the lamps on ebay but its in german they didnt look like the lamps in my amp. and I didn't understand the ad. Did you have any luck finding them



[MarvinG]

Ok thank you so much for that
Greatly appreciated

Do you know by any chance where can i get replacement
-VU meter Lamp bulbs for
Technics SU-Z2 Amplifier and
Technics ST-Z1 Tuner
Its part of the same stereo system
I am trying to get my whole stereo running for my son for Christmas

Hi there these worked on my z2 amp. I didnt solder them just bent them around the bulb hoder. Not a great job but worked. They are brighter than the original lamps. Good luck. I got a new buyer deal. No postage

10 New 8V Led Axial VU Meter Lamp For Onkyo Akai Cassette Reel To Reel Tape Recorders and Other Classic HiFi Devices
Warm White, CHINA
￡1.18
x1
