Ordered up a TA2022 board and a marantz based tone control from aliexpress during their anniversary sale. shipped thru aramex and reached in 12 days. while looking for a suitable enclosure found that they are too big and too costly. so decided to do a diy chassis from some aluminum lying around from a window installation. Used some L angles, channels and aluminum floor board. thought of scavenging the heatsink from a old pcb lying around but could not fit.

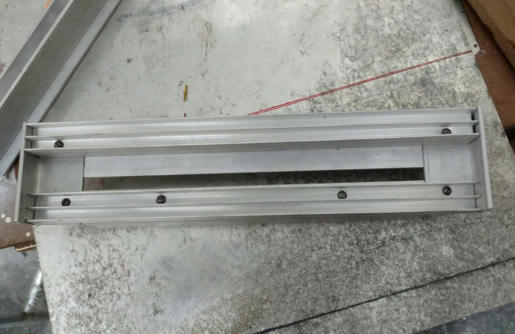

The side panels

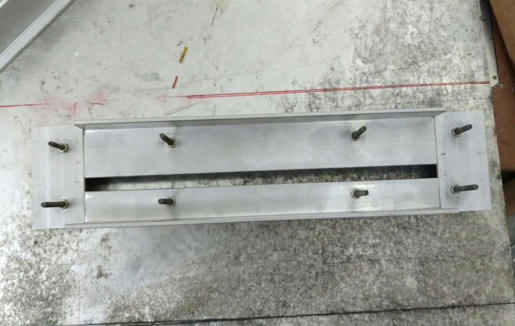

Chassis plate and front/rear plates cut from aluminum floor board

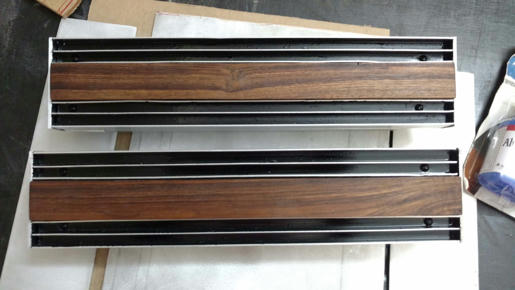

wood inserts cut from a 250 year old Teak floor board which has become as hard as ebony. Polished with Oliveoil+vinegar

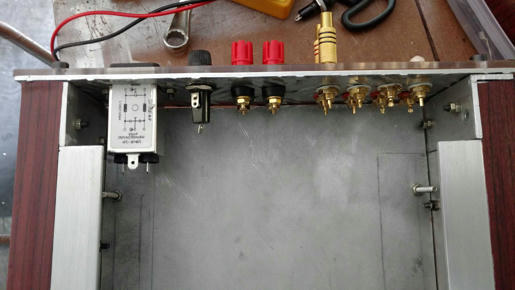

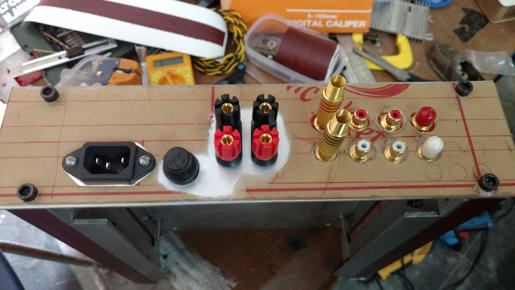

The back panel aluminum and arcylic. speaker out and 4 way input selector

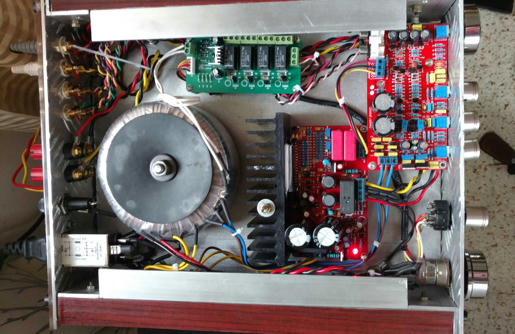

All set up. Toroidal transformer outputting 22-0-22 for amp, 12-0-12 for tone control and 0-12 for the source selector. the multicolored wires also scavenged from a relatively new crosair smps that had gone kaput

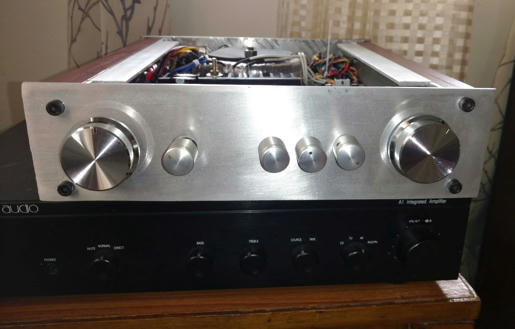

The front panel. knobs for the pot online.
Covered the top with acrylic and used steel washers as spacers to give around 5mm space all around on top for ventilation.
Could not remove the pots from the tone control. seems to be glued on. did not force it in fear of damaging the board. so stuck with the puny pots. even the knobs does not fit properly on them :sad:
Working perfectly. no hum/buzz. dead silent even with volume at full with no source connected. Sounds good. the TA2022 seems to be a good match for my recent diy speaker build. Bass is tight, good treble and stereo. Let it run continuously for 2 hours and the heat sink/other components are barely warm.
Can any one please guide me on how to remove the Pots... want to replace them so that i can get a better finish on the front panel.
