Flexible Solid Core Speaker Cable DIY Built

[balavignesh002]

What is the Cost of this cable:

Since few members asking about the cost involved, thought of putting it across.

The cable and sleeve are 60 meter bulk import just fractioned the overall value to 6 meter, rest are all on actuals.

Product	Cost	Cost in INR	Shipping import	Landing cost
1. Speaker cable for 6 meter	$46.00​	3818​	1909​	5727​
2. Outer sleeve for 6 Meter	$12.00​	996​	498​	1494​
6. Knu Koncept 8 AWG boots	$6.00​	498​	249​	747​
3. Yarbo Audio, Gaofei Pure Copper Spades (pk of 4)	£40.00​	4080​	2040​	6120​
4. Yarbo Audio Gaofei Pure Copper Banana Plugs (pk of 4)	£30.00​	3060​	1530​	4590​
5. Mundorf 9.5% silver gold solder supreme 4m length	£20.00​	2040​	1020​	3060​
7. Heat shrinks and Tapes				500​
8. Your Time and Labour and Skills				0​
				22238​



[balavignesh002]

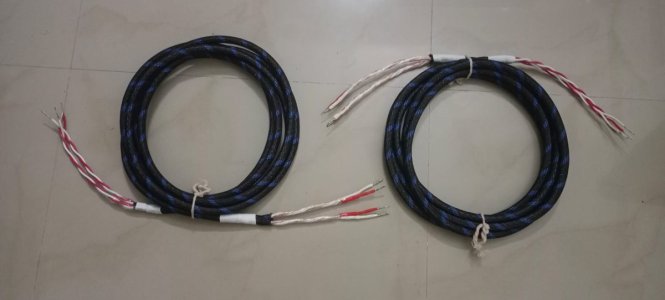

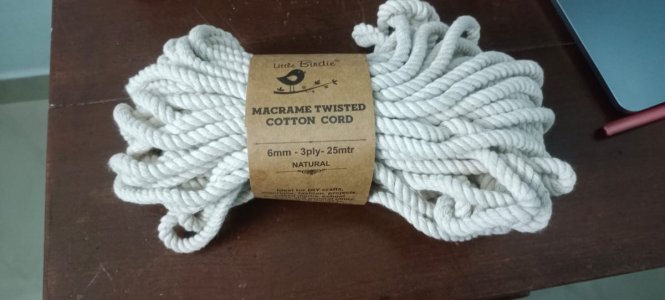

Made A pair of bi-wire cable to install in Jetta for tweeter and midrange. This time used 6 mm cotton rope to have thinner cable.

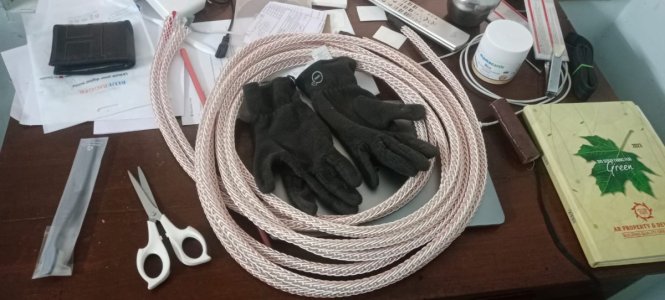

Used a hand glove to save palm while squeezing

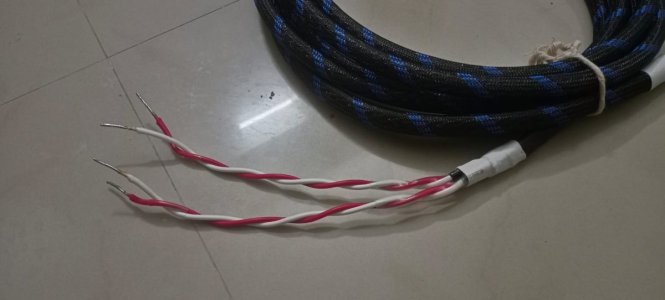

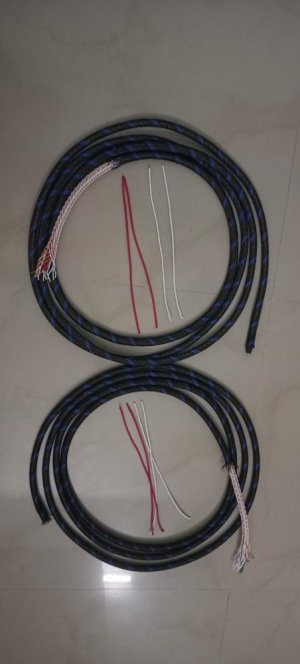

Used a Single solid core cable for speaker side hookup and amp side left it all as it is.

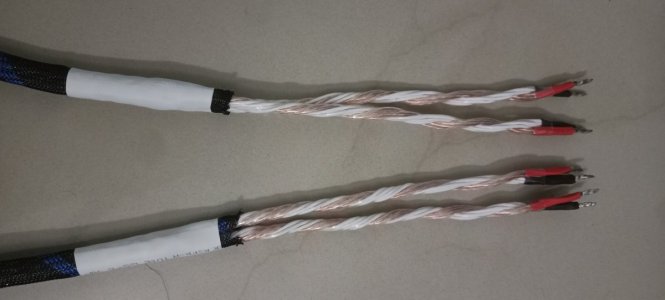

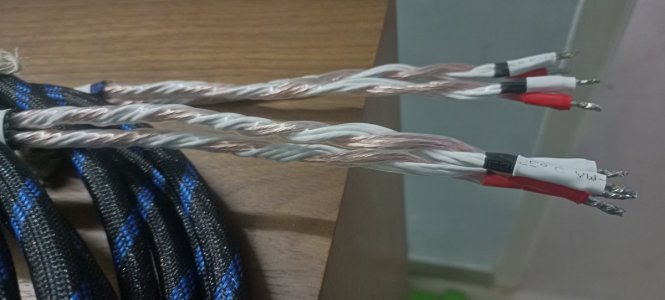

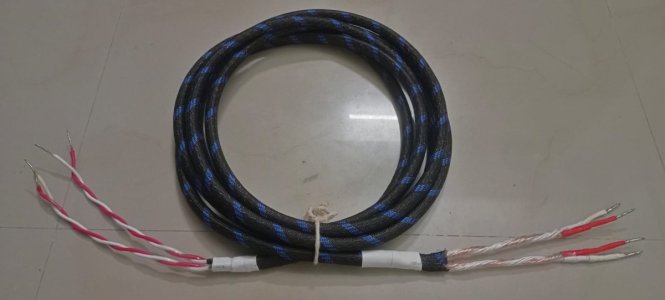

The final finish with soldered ends and with transparent heat shrink.



[Sandip Das]

looks nice as usual..



[balavignesh002]

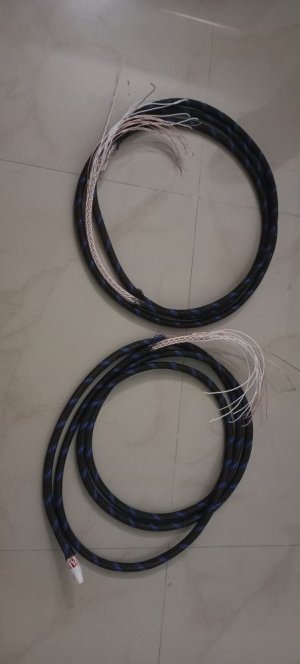

Made a pair of cable for Vento, this is going to connect McIntosh amps with tweeter and midbass.

This time used bullet plugs for hookup wire connection.

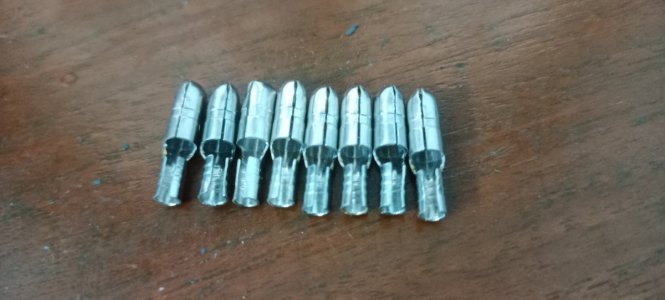

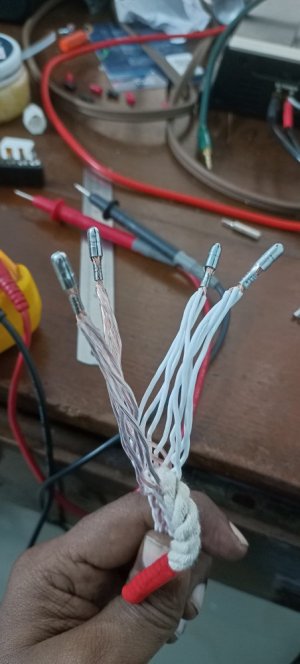

Getting the bullet plugs ready to hold the wire.



Crimping

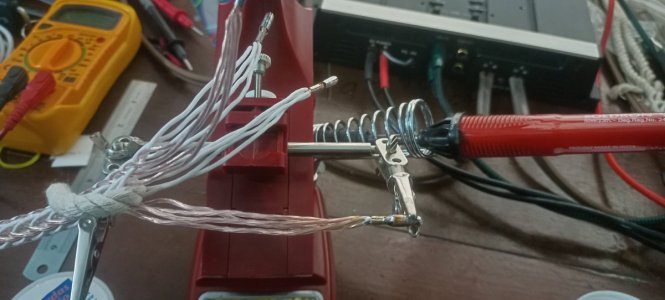

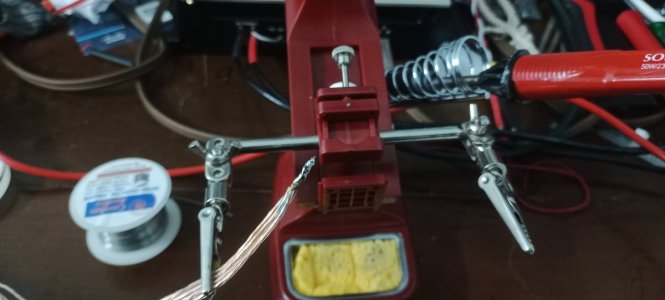

Soldering to have better connection

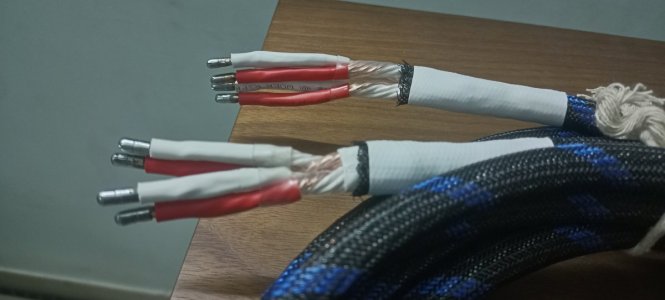

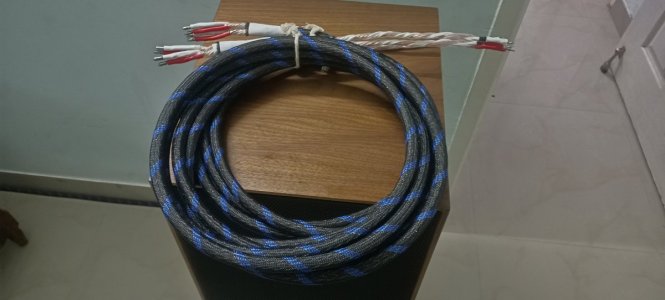

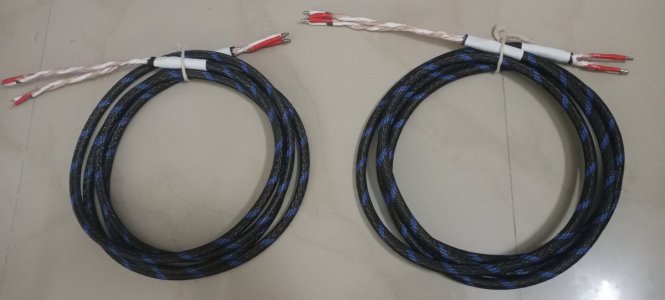

Work Finished cables



[rajan-]

Good cable for sure.
I have been using the next bigger size (12TC cable) for a few months now
