DIY - Pre and Power Amplifier using DD Board
- Thread starter Triple Ace
- Start date
surfatwork
Well-Known Member
Looks fantastic. Superb job
Thank you for the pointer.The VU meter cost was on a higher side as it is the OEM VU meter of Onkyo M5000. It costed me somewhere around 12k including Shipping and Custom duty. You can find them in ebay.co.uk. Below is the URL for your reference

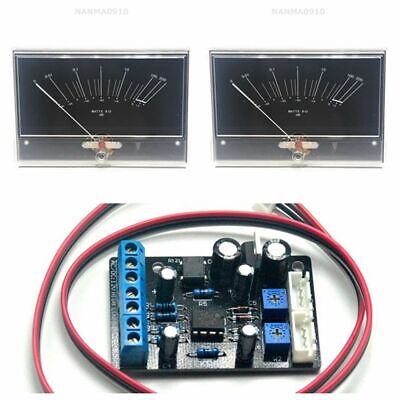

2x Onkyo M-5000R Power Amplifier VU Panel Meter w 1pc Power Supply Driver Board | eBay
Matched to Japan ONKYO M-5000R HIFI power amplifier. The direction of the pointer swing : left to right. The influenza degree pointer at the zero scale to the maximum scale sensitivity of 1000 uA ± 10% (full scale position).www.ebay.co.uk
spirovious
Well-Known Member
Wonderful built.
Looking to get detailed sonic review. Congratulations.
Looking to get detailed sonic review. Congratulations.
@Triple Ace Excellent build and beautiful vintage style.
I recently build my first ever DIY powered by DD 120 WPC Power amplifier and DD Pre Amplifier but mine are looking very ordinary.
I recently build my first ever DIY powered by DD 120 WPC Power amplifier and DD Pre Amplifier but mine are looking very ordinary.
Last edited:
Why do you say that KNRAMU ? They look very nice to me.
-x-x-x-
You all should thank me for not posting my unfinished/testing/experimental amps. They look downright ugly.
Triple Ace
Active Member
@KNRAMU - Your build does look very good to me.
Looks very good
sachu888
Well-Known Member
Nice build.
Regards
Sachin
Regards
Sachin
Beautiful... Just one word "Zabardast"
Triple Ace
Active Member
Hi All,
Got occupied with some high priority things since yesterday. So could not post much update on my Amp. Now here is the update .
The Amp got delivered yesterday. In order to make chassis safe, Aniket did very good packing. In fact I would say it is truly professional. He has packed the cabinet inside a carton box with very good packing. On top of the Carton box, he has put wooden crate just to secure the box and not getting damaged during the transit. Attaching couple of photos for same.
Got occupied with some high priority things since yesterday. So could not post much update on my Amp. Now here is the update .
The Amp got delivered yesterday. In order to make chassis safe, Aniket did very good packing. In fact I would say it is truly professional. He has packed the cabinet inside a carton box with very good packing. On top of the Carton box, he has put wooden crate just to secure the box and not getting damaged during the transit. Attaching couple of photos for same.
Attachments
Triple Ace
Active Member
Triple Ace
Active Member
Getting goosebumps one word amazing
Triple Ace
Active Member
Initial Impression is excellent. I played some trance music and it has blown away my mind. Will upload some video by tonight
Used Cardas RCA Interconnect cable and Belden 8471 16 AWG tinned copper cable. Will try with some other cable (pure copper) and provide my verdict.
Used Cardas RCA Interconnect cable and Belden 8471 16 AWG tinned copper cable. Will try with some other cable (pure copper) and provide my verdict.
Attachments
keith_correa
Well-Known Member
I appreciate the stylish logo, the fonts used and the unobtrusive placement of the lettering.
Oh, superb build too!
Oh, superb build too!
Triple Ace
Active Member
Hi Sreejith,
Uploaded a small video of my amp response. However I need to tweak the VU Meter setting to reduce its motion. Check the short video.
Last edited:
