How do I connect 4 in ceiling speakers to a stereo amplifier?

pantpank

Active Member
Joined
Dec 5, 2010
Messages
162
Points
43
Location
Indore

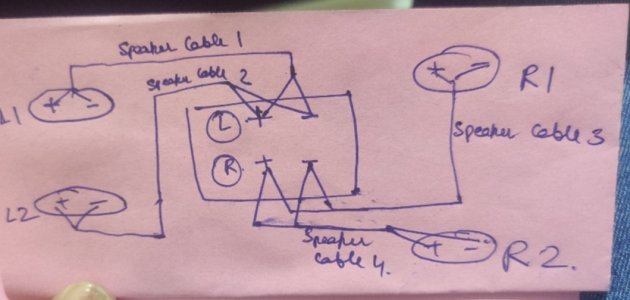

I have installed 4 speakers in my ceiling, each speaker connected with a cable. Can I connect 2 cables together at the left and right terminal of the amp so that all 4 speakers are powered ?


Attachments

  • IMG_20240701_115312.jpg
    190.2 KB · Views: 13
In some cases, yes... depends on the impedance of the speakers and your amp.
can you share some specs?

...

In some cases, yes... depends on the impedance of the speakers and your amp.
can you share some specs?

...
Micca M-6C Specifications:Frequency Response: 50Hz-20kHz. Impedance: 8 Ohms. Sensitivity: 87dB 1W/1M. Power Handling: 80 Watts (Each)

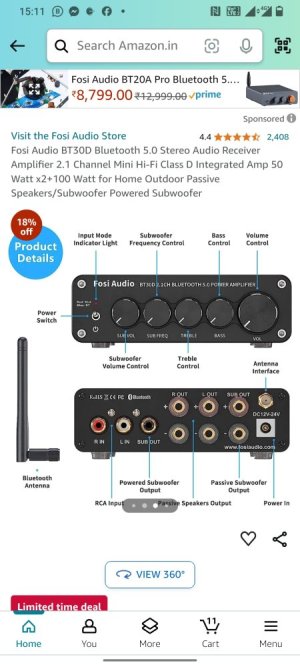

Amp- Fosi Bt30D

Output Power‎50 Watts
Wattage‎200 Watts
Number of Channels‎2
Output Wattage‎200 Watts


Attachments

  • Screenshot_2024-07-01-15-11-10-47_fd1e8ef594b195c55a3bba4818d0ce35.jpg
    86.8 KB · Views: 7
Connect in series. Do not use the transformer if given in the speakers. You can search for series wiring on youtube. Attach two speakers in series in one chanel.
Parallel should not be an issue - the amp based on specs can drive 2 - 8 ohms. Series will give you a 16 ohm Load and that probably won’t give OP the loudness required. In this case 2 in parallel presenting a 4 ohm Load may be better
