Marantz Cinema 50 + JBL Studio 600 Series - A good combination?
- Thread starter apoorvasheth
- Start date
Silencer
Well-Known Member
Have you considered the idea of adding a power amp to the existing rxv685? It has front pre outs. Also try to fix the room acoustics. A great speaker can sound like crap in a bad room. Room correction can only help so much. Too many speakers in a small room also is a bad idea. A properly laid out 5.1 in a treated room can give you goosebumps.
Also try getting speakers with high sensitivity if you reconsider the whole plan and decides to stick with the existing gear.
Sky is the limit if you want to spend. And expensive stuff don't mean great sound. The devil is in the speaker placement and the room most of the time. You're will be very happy man if you can get those right.
Try getting a new sofa, a wall rug. Involve the spouse in the decision making if you're married. Make her feel like she is designing the home theatre. And give her full credit if your visitors admire your new HT setup.
It will help you in long run for future upgrades since your HT space is a living room.
Also try getting speakers with high sensitivity if you reconsider the whole plan and decides to stick with the existing gear.
Sky is the limit if you want to spend. And expensive stuff don't mean great sound. The devil is in the speaker placement and the room most of the time. You're will be very happy man if you can get those right.
Try getting a new sofa, a wall rug. Involve the spouse in the decision making if you're married. Make her feel like she is designing the home theatre. And give her full credit if your visitors admire your new HT setup.
It will help you in long run for future upgrades since your HT space is a living room.
apoorvasheth
Member
Many thanks for your inputs. No, I'm not married that's why able to enjoy life by buying my dreams things...Hehee....(-:
Yes, speaker placement is a good idea. Emotiva aren't higher in sensitivity?
Also, how difficult is it to claim warranty from Sound United for their products like Marantz & Denon Amp?
I'll checkout for the Wall Rug options though b'coz this being living room, foams to absorb sounds from the speakers cannot be pasted on the wall since my home will then look like a demo room...(-:
I think Pluto & Saturn is the limit for Home Theatre buyers...Heeee...(-:
I didn't think of Power Amp at this moment b'coz this amp being quite old - 2018 so want to get in a fresh piece.
I've heard upgrading the amp will bring a tremendous improvement in sound quality due to the latest amps such as Denon/Marantz offering much better-quality sound output due to its internal sound processing technology. Tonality will improve a lot!
By the way, in which year were these Amp manufactured:
Marantz Cinema 50
Marantz Cinema 60
Denon AVC-X3800H - 9.4 Channel 8K AV Receiver
Denon AVR-X2800H 7.2 Ch. 150W 8K AV Receiver
Regards,
Apoorva.
You will get this year manifactured amp. Model 2023 I think for maranz 50. Check google.
mean while 2800 is 95 watts 8 ohms 2 channel driven. Not 150 watts. Pls check.
my suggestion if budget permits gk with maranz 50.the best.
apoorvasheth
Member
Can someone kindly guide me on this?

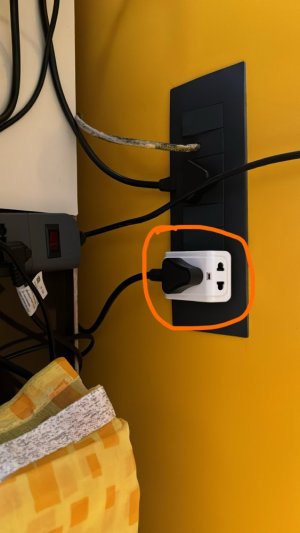

For Marantz Cinema 50, do I also need to change my main socket from present 5 Amps to 15 Amps?

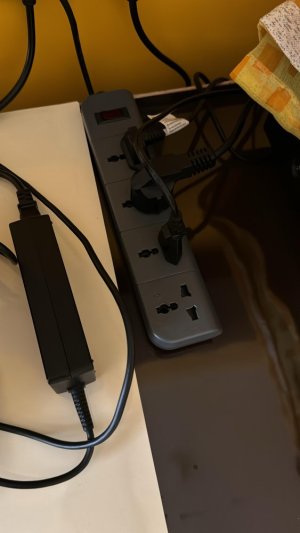

If yes then, what about my Surge protector? Can I still plug it into the 15 Amps socket & continue to plug in TV, JBL 660P & Marantz Cinema 50 into the surge protector?
Won’t a 15 Amps power wall socket blow off my Sony OLED or JBL 660P Sub b’coz 15 Amps ideally is being used for Geyser, Fridge or Microwave.
My audio dealer in our yesterday’s conversation suggested me to use 15 Amps wall socket b’coz this Marantz Cinema 50 has high current to power the speakers.
What is 5 Amps & 15 Amps & when are they to be considered except for the only thing I am aware about them is that 5 Amps socket is used for TV, Mobile charging, etc… whereas 15 Amps is used for heavy appliances such as Geyser, Fridge, etc… & it’s ideally been recommended not to use simple mobile charging or other small equipments in such heavy sockets otherwise it will damage the device that’s being charged, is this true?

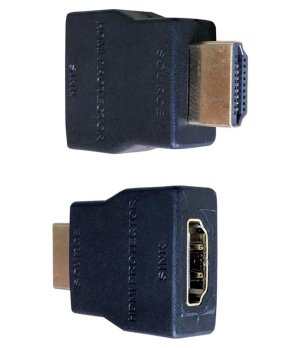

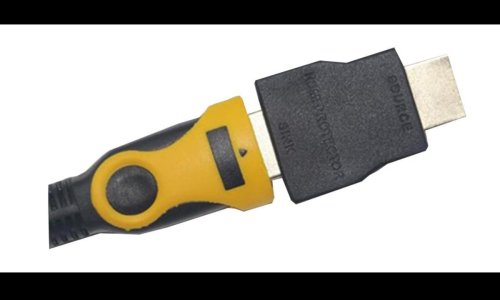

A local service center for Yamaha Audio also suggested me to use HDMI connector protector like this…
so as to avoid HDMI Current leakage.
pixelpitch.in
I now also feel that maybe I should move JBL 630 to rear (Surround) & buy new Emotiva Airmotiv B2+ - Bookshelf Speakers for the fronts.
Which between JBL & Emotiva do you all feel is the best for Fronts Left + Right in terms of sweet sounding detailed crystal clear sound quality when I listen to all the songs whether Hindi or English & experience best sound quality? And for background effects while watching an Action or Horror movie scenes?
And if I love the sound of Emotiva after listening to it on a 2-channel stereo for couple of hours then, I’ll buy this for the Front Heights - Emotiva Airmotiv XA2 - Height/Surround/Ceiling/Reflective Speakers - Pair
Regards,
Apoorva.
For Marantz Cinema 50, do I also need to change my main socket from present 5 Amps to 15 Amps?
If yes then, what about my Surge protector? Can I still plug it into the 15 Amps socket & continue to plug in TV, JBL 660P & Marantz Cinema 50 into the surge protector?
Won’t a 15 Amps power wall socket blow off my Sony OLED or JBL 660P Sub b’coz 15 Amps ideally is being used for Geyser, Fridge or Microwave.
My audio dealer in our yesterday’s conversation suggested me to use 15 Amps wall socket b’coz this Marantz Cinema 50 has high current to power the speakers.
What is 5 Amps & 15 Amps & when are they to be considered except for the only thing I am aware about them is that 5 Amps socket is used for TV, Mobile charging, etc… whereas 15 Amps is used for heavy appliances such as Geyser, Fridge, etc… & it’s ideally been recommended not to use simple mobile charging or other small equipments in such heavy sockets otherwise it will damage the device that’s being charged, is this true?
A local service center for Yamaha Audio also suggested me to use HDMI connector protector like this…
so as to avoid HDMI Current leakage.

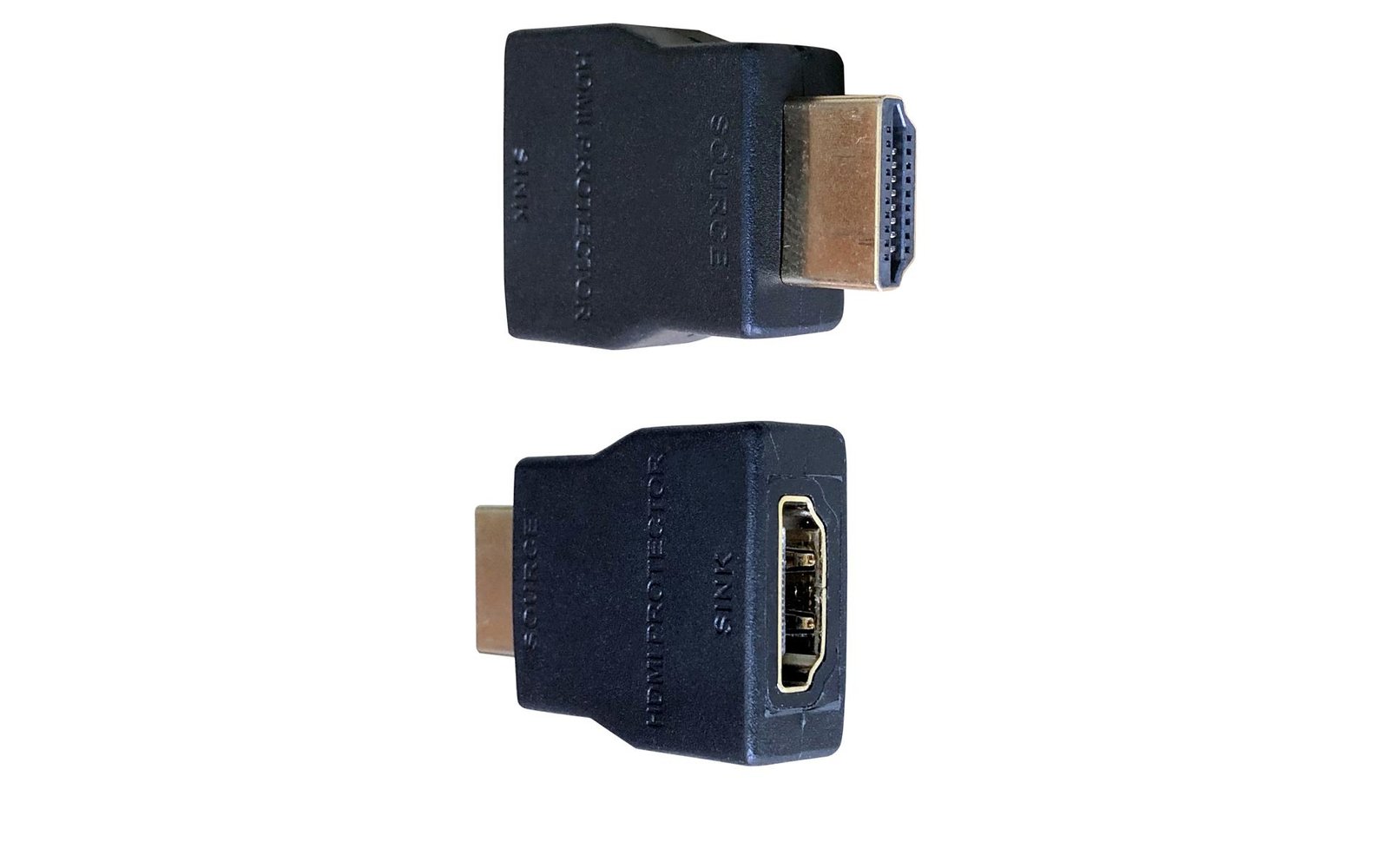

Portable HDMI Surge Protector ESD Surge Protection - Pixelpitch
Novalink NLV-HP01 BRIEF DESCRIPTIONS This is an ultra low capacitance electrostatic discharge (ESD) protection device series of products. Single-wire ESD protection device that provides 0.5 picofarads (pF) capacitance and low clamping voltage. FEATURES This is an ultra low capacitance...
pixelpitch.in
I now also feel that maybe I should move JBL 630 to rear (Surround) & buy new Emotiva Airmotiv B2+ - Bookshelf Speakers for the fronts.
Which between JBL & Emotiva do you all feel is the best for Fronts Left + Right in terms of sweet sounding detailed crystal clear sound quality when I listen to all the songs whether Hindi or English & experience best sound quality? And for background effects while watching an Action or Horror movie scenes?
And if I love the sound of Emotiva after listening to it on a 2-channel stereo for couple of hours then, I’ll buy this for the Front Heights - Emotiva Airmotiv XA2 - Height/Surround/Ceiling/Reflective Speakers - Pair
Regards,
Apoorva.
Attachments
The Marantz Power Plug is a standard 5 amps one. You need to ensure the Electric Outlet is good and can provide enough current for the AVR. Typically Cinema 50 would be around 650watts - 710 watts of consumption. I use a SR6014 which is 9.2 channel (Somewhat like the Cinema 50) and plugged in a dedicated surge board.
There is no actual harm in my opinion but those with more tech knowledge should chime in here. An Appliance (TV or Amp) will pull current from the socket to operate, nothing will blow unless there is extra raw power being sent to the outlet causing appliances then to fry away!
If the electric socket is in proper order there will be no current leakages to the AVR or other sensitive electronic products which can fry it.A local service center for Yamaha Audio also suggested me to use HDMI connector protector like this…
Portable HDMI Surge Protector ESD Surge Protection - Pixelpitch
Novalink NLV-HP01 BRIEF DESCRIPTIONS This is an ultra low capacitance electrostatic discharge (ESD) protection device series of products. Single-wire ESD protection device that provides 0.5 picofarads (pF) capacitance and low clamping voltage. FEATURES This is an ultra low capacitance...
It would be advisable to check all outlets and electric supply for the whole house to ensure there is no leakage and there is ample supply before connecting any expensive sensitive appliance. Not sure of this device if being used by any of the Forum Members
Would suggest to audition as many speakers as possible with your music and also favorite movie scene so that you can draw a reference and decide.
I feel you should look at the Cinema 50 and maybe also check the Onkyo Z50. Marantz follows the Music first principle so you will definitely enjoy all kinds of music playback but need to have decent speakers. Fronts could be decent Floor Standing Tower or Bookshelf or Satellite Speakers coupled with a good 12 inch subwoofer.
Would recommend to contact Mr Anil (HifiMart @HiFiVision ) who will work out a good deal and recommendations where possible. You can also check with other dealers who can offer competitive rates along with official warranty.
All the best!
COOLDUDE7808
Active Member
I don't own AVR's . See my Signature , I am a great fan of Marantz sound . As long as it works , is great . Once it goes down , then Servicing is an big issue even in Mumbai . I have learnt that now from my personal experience . Don't know about the city where you stay , if you have local mechanics who can service Marantz , then great .
There are post in this forum about that for AVR's . So go thru that and then decide . This is more important now considering the prices that they charge both for new products and repairs .
In 2013 or so when I had to replace the lens in my CD6003 , they used to give a 6 months warranty on spare parts and repairs . Now there is no warranty on spare parts and repair . I have had a bad exp with amp repairs and lost money ,considering that they charge heavily . Now I am looking for some local mechanic here .
This to my mind from an authorized service Centre is not good . We go to them because they will use original Marantz parts and give good service. If they are not willing to take responsibility / accountability for whatever they are doing unlike the past , then we have to factor that while buying .
There are post in this forum about that for AVR's . So go thru that and then decide . This is more important now considering the prices that they charge both for new products and repairs .
In 2013 or so when I had to replace the lens in my CD6003 , they used to give a 6 months warranty on spare parts and repairs . Now there is no warranty on spare parts and repair . I have had a bad exp with amp repairs and lost money ,considering that they charge heavily . Now I am looking for some local mechanic here .
This to my mind from an authorized service Centre is not good . We go to them because they will use original Marantz parts and give good service. If they are not willing to take responsibility / accountability for whatever they are doing unlike the past , then we have to factor that while buying .
Last edited:
To get rid of your fears try starting from the end. AVR quality is a matter of lottery - hence check if there are any reliable service technicians in your city/town. Ideally these things are supposed to last but I remember getting some IC replaced in my Marantz AVR after a year of purchase. My Pioneer AVR required replacement of some circuit boards after 6 years. The Benq projector required mother board replacement after 3 years. The earlier Epson projector's lamp fused after 1 year of purchase. I could luckily find the fault and make repairs my self saving some 20k in the process. But to cut a long story short- the company will stand by you only for a year. Beyond that you need a reliable & knowledgeable repair guy. If you are lucky the equipment will last long but be prepared to spend some pennies here and there every once in a while. This hobby was never cheap
apoorvasheth
Member
To get rid of your fears try starting from the end. AVR quality is a matter of lottery - hence check if there are any reliable service technicians in your city/town. Ideally these things are supposed to last but I remember getting some IC replaced in my Marantz AVR after a year of purchase. My Pioneer AVR required replacement of some circuit boards after 6 years. The Benq projector required mother board replacement after 3 years. The earlier Epson projector's lamp fused after 1 year of purchase. I could luckily find the fault and make repairs my self saving some 20k in the process. But to cut a long story short- the company will stand by you only for a year. Beyond that you need a reliable & knowledgeable repair guy. If you are lucky the equipment will last long but be prepared to spend some pennies here and there every once in a while. This hobby was never cheap
Your last sentence is a golden line: “the company will stand by you only for a year”. It speaks so much. The thing is that one can spend money for once & then forget about it for next 7 to 8 years. But if this Marantz Cinema 50 doesn’t last for more then 2 to 3 years gives a huge bill of repairs then that’s where it’s a real shock in pain!
My Yamaha RX-V685 amp gave up itself on 25th August 2020 (2 years) from purchase date: September 2018, the reason was HDMI current leakage. So, luckily b’coz the cost of the amp itself was 50k so, I escaped with 11k in repair cost. Got it repaired. But again, in September 2021, the Audio 1 stopped to function. So, sent for repairs again. Ever since then, the amp now works fine but it failed for twice.
I feel it’s a gamble to buy an expensive amp above 2 lakhs.
Can you kindly guide the cost of each parts inside Marantz Cinema 50 so that I come to know cost of repairs in the future after a year.
Regards,
Apoorva.
Price of cinema 50 which 2.54 is mrp only. You will get good discounts on this. Before purchase i think you are more worrying about repairs.As per geeta krishna said "JAATASYA MARANAM DHRUVAM". Means person who borns must die that doesng meanz one should worry about birth
. Just kidding. Iam sure There are many people in our group uskng avrs from last 4 to5 yrs with out any problem.apoorvasheth
Member
Price of cinema 50 which 2.54 is mrp only. You will get good discounts on this. Before purchase i think you are more worrying about repairs.As per geeta krishna said "JAATASYA MARANAM DHRUVAM". Means person who borns must die that doesng meanz one should worry about birth
Yes, but after humans die, money is not needed in the other world to survive but if my Amp dies, money is needed, maybe sometimes too much of it to get it back to life with no guarantee of its survival period…
apoorvasheth
Member

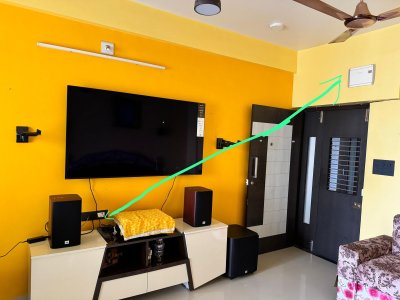

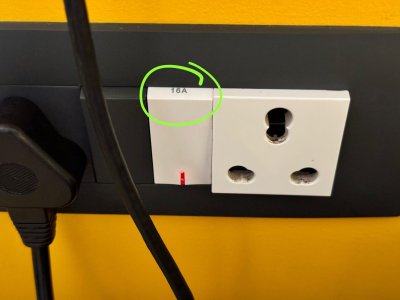

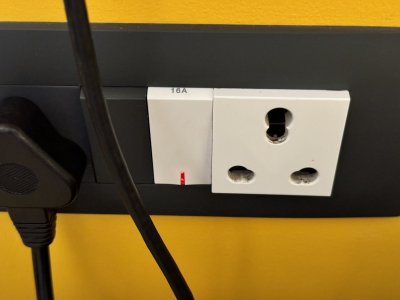

Hello All, finally got the switch board changed from 5 Amps to 16 Amps. It’s of Legrand - best brand.
The electrician said that Towers type buildings already have 1.5 Amp electric cables provided by the builder to support 15 Amps. Is that true?
Regards,
Apoorva.
The electrician said that Towers type buildings already have 1.5 Amp electric cables provided by the builder to support 15 Amps. Is that true?
Regards,
Apoorva.
Attachments
apoorvasheth
Member
I just talked to another electrician & he said that 1.5mm thickness electric wire behind these sockets are not sufficient to handle 16 Amps socket. I need to pull in 2.5MM electric wire from ELCB in my living room either from behind the wall or from outside.
It's all confusion. He said 16 Amps socket can be fixed anywhere but, it also needs a supporting 2.5MM thick electric cables.
If I continue with 1.5MM thick electric cable on a 16 Amps Legrand Socket then, what will happen?
It's all confusion. He said 16 Amps socket can be fixed anywhere but, it also needs a supporting 2.5MM thick electric cables.
If I continue with 1.5MM thick electric cable on a 16 Amps Legrand Socket then, what will happen?
Attachments
caspian1985
Active Member
Chec
Check out the Integra DRX 3.4 - it’s 100W x 9 channels, all preouts, and most importantly has Dirac. It also comes with 18 months warranty instead of 12, and is the same price as Cinema60
apoorvasheth
Member
Thank you. I have emailed their support team to kindly share address of their authorized Dealer / Distributor in India. I checked the website of this product: https://integrahometheater.com/product/drx-3-4-9-2-channel-network-a-v-receiver/ & noticed this Amp is primarily made for Klipsch speakers. I don't like Klipsch speakers at all as once I had auditioned them & walked out within 5 to 10 seconds as they sound so pointed like a needle, harsh sound.
caspian1985
Active Member

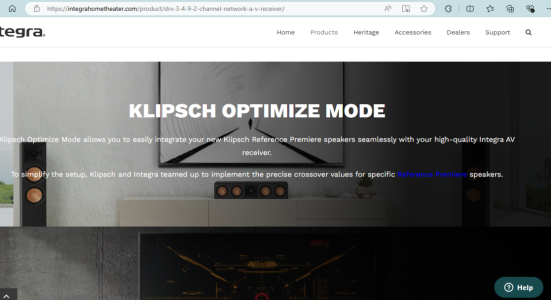

They’re not made for Klipsch - they just have a mode that automatically sets crossovers if your speakers happen to be Klipsch. Integra is a very well regard brand from Japan, owned by Onkyo and now PAC, known for features and reliability
Current distributor is Cinebels ( www.cinebels.com ), I’d got my Pioneer LX-505 from them in Mumbai before they took up Integra too
COOLDUDE7808
Active Member
You need to address this first . Don't go by the Electricians Guess work . Why would any Builder spend more and put extra gauge wire ? . If there was a 6 amp socket , most probably he would have put a 0.75 Sq mm Wire . All wires can handle a bit more current than what they are rated for BUT only for a limited amount of time . Electricians often use this and put a lower gauge wire and tell you not to worry . Capacity of the wire will vary slightly depending on the brand / type etc.

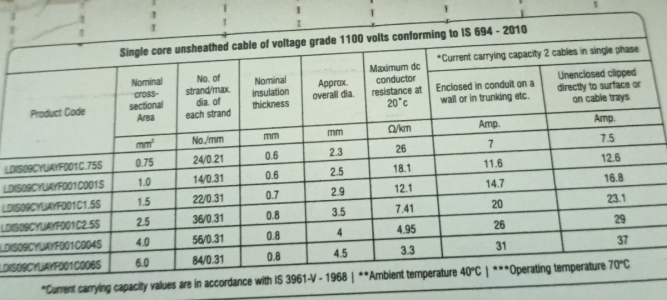

I had my wiring done last year . So refer attachment for Polycab wires , which is what mostly they all use .
Use the wire to 80% of its actual capacity . Hence go for one gauge higher .
For 16 amps I have put 2.5 sq mm wire (3 wires - Phase , Neutral and Earth) from the socket to junction box in the house . Don't Join wires to the existing wire (some electricians do that) . IT should go from the socket to your Junction box and get connected to MCB , Neutral Bar and Earthing .
All said and done I am not sure which AVR will require this kind of power . When you get one , the AVR power cord will most probably have 0.75 Sq mm or 1.0 Sq mm printed on it . So in case you already have 1.5 Sq mm Wiring then don't spend on wiring . But do check first .
In case the same circuit is being used for other purposes , then put 2.5 and be safe . I have 3 amps and even if play all together they will not cross 6 amps . But I had this wiring done with future upgrades in gear in mind and also my stabilizer needs that 16 amp pin .
COOLDUDE7808
Active Member

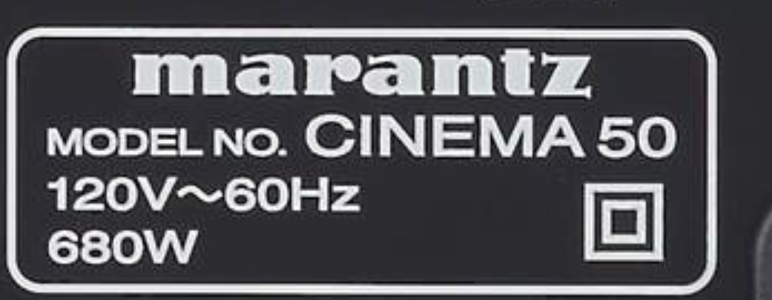

Check Marantz US website for Cinema 50 - Power Consumption in Watts is 680
To be on the safer side , just double it .
To be on the safer side , just double it .
apoorvasheth
Member
Thank you for such a detailed inputs. The problem is that electricians don’t listen & do what they feel is correct. It’s extremely difficult to deal with them as they think themselves as our BOSS & insult us saying: “You don’t understand anything”. They are JERKS.
Anyway’z, someone on this forum uses Marantz Cinema 50. He can confirm us whether his Power cord mentions 0.75 Sq MM or 1.0 Sq MM?
But what I am trying to understand here is what WORSE can happen if I plug in the power cord of Marantz Cinema 50 into the 16 Amps socket which is connected to 1.5 MM electrical wires red & yellow (is what I noticed the colors of when electrician removed the front cover plate)?
Regards,
Apoorva.
COOLDUDE7808
Active Member
if its 1.5 for sure then nothing will happen , your wire should have a capacity of handling 14 amps so that's more than sufficient for Marantz Cinema 50 .
use this to figure out ....from the color of the wire ...it seems you have a 3 phase supply at your house . But again check all this and then use the below table . Just double the current required finally and accordingly do your wiring .
2.5 Sq mm will ensure that in case there are future upgrades, additional gear etc or you get some stabiliser etc ...then you dont have to redo the wiring again and again
Watts to amps (A) conversion calculator
Electric power in Watts (W) to electric current in amps (A) calculator.
www.rapidtables.com
