My First DIY Amplifier (JLH 1969)

[saikatbiswas82]

From where you are going to get the kit/parts, let me know as me too require the psu for the amp

You require a really big heat sinks to handle the heat


Sent from my iPhone using Tapatalk

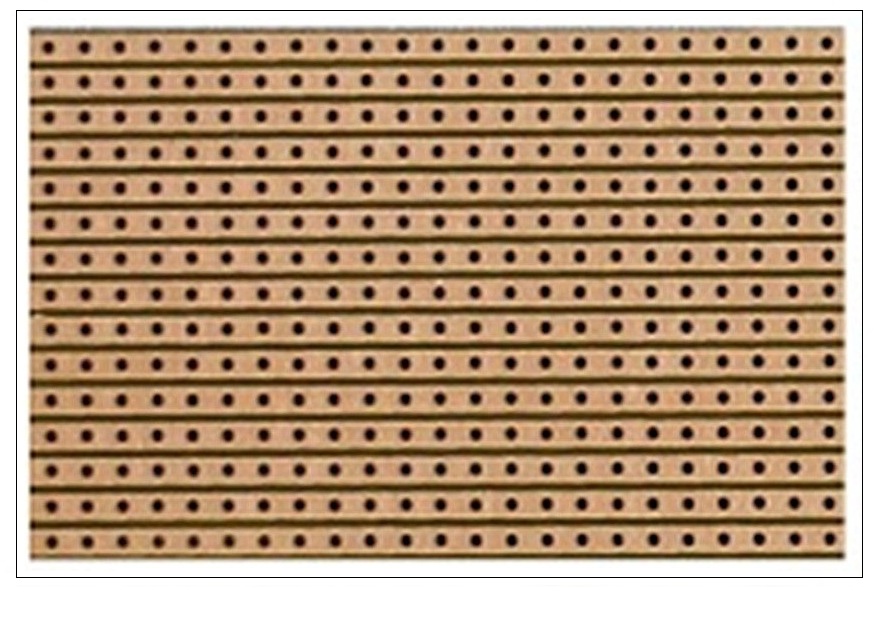

I am planning to order the pcb+kit from eBay. For the psu, I think I'll build a CRC psu with a bridge rectifier on a veroboard like this. I am planning to use 30000uf per rail.

I'll be getting two 195mm X 100mm X 32mm heatsinks. The TO-3 transistors will be mounted on a 3mm aluminium L shaped mounting plate.

I'm also planning to use a 18-0-18v toroidal transformer for this project.

Sent from my Nexus 5 using Tapatalk



[saikatbiswas82]

If you can buy 3mm aluminum sheet then its easy to cut at aluminum window maker. Drilling is DIY. Anodizing can be queried at same window maker or uNits.

Your suggestion worked like a charm. I would like to thank you again for that. Finally I am done with my custom cabinet.

http://www.hifivision.com/diy/62995-my-diy-amps.html



[omishra]

Your suggestion worked like a charm. I would like to thank you again for that. Finally I am done with my custom cabinet.

http://www.hifivision.com/diy/62995-my-diy-amps.html

Great, you are welcome.

Sent from my E6 using Tapatalk
