Simple LM3886 Amplifier

[omishra]

One of my friend imported this through EMS and Indian custom department drilled hole into each cylinder to find what's hidden inside.



[saheb11123]

Then what happened to the caps?
Did they compensate?



[omishra]

Then what happened to the caps?
Did they compensate?

Caps as expected, got killed by those torture before using it. And compensation from those morons? Do you think it's possible?



[saheb11123]

Thats true...
That was quite a loss..



[tiger0691]

If you want, I will send them to you.

It is free give away.

Cheers!

Chang



[saheb11123]

If you want, I will send them to you.

It is free give away.

Cheers!

Chang

Yes Please..



[saheb11123]

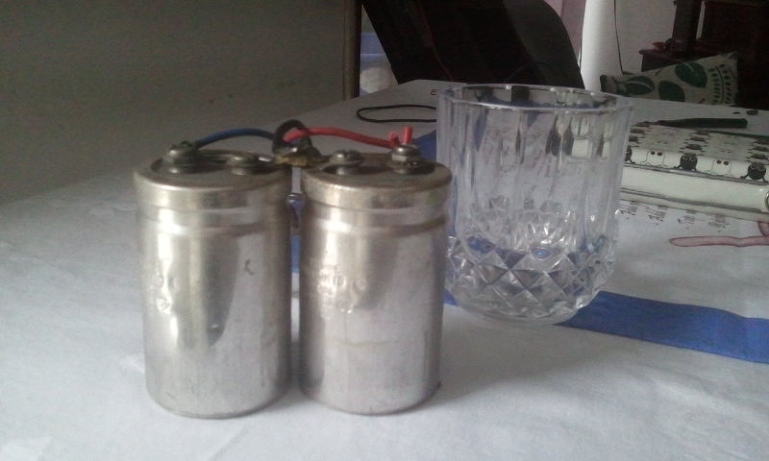

I have finally managed to conserve some money and get some good caps from an friend at uber-cheap prices (paid only shipping )

upcoming are the pics after some cable management and fitting of the new caps, forgot to bypass them with smaller ones so will update that later.



[saheb11123]

On another note here is the LM4765 amplifier kit complete soldered sent by FM jaibir (thanks dada very much)

Quick question?
What will be the current req of the amp it says it needs two 0-20 inputs will two 2amps traffo work?



[omishra]

On another note here is the LM4765 amplifier kit complete soldered sent by FM jaibir (thanks dada very much)

Quick question?
What will be the current req of the amp it says it needs two 0-20 inputs will two 2amps traffo work?

Wow, that's great. I can see WIMA small caps and all Dale resistors on boards. You got good kit.



[lifewater]

On another note here is the LM4765 amplifier kit complete soldered sent by FM jaibir (thanks dada very much)

Quick question?
What will be the current req of the amp it says it needs two 0-20 inputs will two 2amps traffo work?

Hey Soumya, lovely kit. Whose design ?? and is it available for purchase or donation ? I would like to try one of these.

Best Wishes,

Pranjal



[saheb11123]

Hey Soumya, lovely kit. Whose design ?? and is it available for purchase or donation ? I would like to try one of these.

Best Wishes,

Pranjal

This is the lm4765 amp that I was talking to you about over the phone the other day, FM jaibir's giveaway.
Yes it's a good kit, and by design all of the kits which jaibir sir had was from diyzone.com(the ebay kits which he had for giveaway).

I will take them with me to your place this month if and when we meet and we can have a blast then.

Regards
Soumyajyoti



[saheb11123]

Waiting for answers about current requirement.



[lifewater]

This is the lm4765 amp that I was talking to you about over the phone the other day, FM jaibir's giveaway.
Yes it's a good kit, and by design all of the kits which jaibir sir had was from diyzone.com(the ebay kits which he had for giveaway).

I will take them with me to your place this month if and when we meet and we can have a blast then.

Regards
Soumyajyoti

Lovely, looking forward to meet you.

Pranjal



[saheb11123]

Lovely, looking forward to meet you.

Pranjal

The mosfet kit also has dale and high quality parts :yahoo::clapping:
