Pass B1

[sachu888]

Re: Pass B1 BOM

Hi all,
I am following this thread for Pass B1 BOM Nelson Pass B-1 preamp kit

I have found following components on Element14

RESISTOR, METAL FILM, 1MOHM, 500mW, 1% : VISHAY DALE|CMF551M0000FHEB|RESISTOR, METAL FILM, 1MOHM, 500mW | element14 India
RESISTOR, METAL FILM, 1KOHM, 500mW, 1% : VISHAY DALE|CMF551K0000FHEB|RESISTOR, METAL FILM, 1KOHM, 500mW | element14 India
RESISTOR, METAL FILM, 221 KOHM, 500 MW, 1% : VISHAY DALE|CMF55221K00FHEB|RESISTOR, METAL FILM, 221 KOHM | element14 India
RESISTOR, METAL FILM, 10KOHM, 500mW, 1%
VISHAY DALE|CMF5510K000FHEB|RESISTOR, METAL FILM, 10KOHM, | element14 India
RESISTOR, METAL FILM, 15KOHM, 500mW, 1%: VISHAY DALE|CMF5515K000FHEK|RESISTOR, METAL FILM, 15KOHM, | element14 India
CAPACITOR ALUM ELEC 15000UF 25V SNAP-IN: CORNELL DUBILIER|SLPX153M025A9P3|CAPACITOR ALUM ELEC 15000UF 25V | element14 India
1N914BTR - SMALL SIGNAL DIODE 100V 200mA DO-35 : FAIRCHILD SEMICONDUCTOR|1N914BTR|SMALL SIGNAL DIODE 100V 200mA | element14 India

I could not find on Element 14,(please suggest substitute): Digi-Key - P1.0W-3BK-ND (Manufacturer - ERX-3SJ1R0)
Digi-Key - BC2076-ND (Manufacturer - BFC241671005)


Parts Express:
Jantzen 1.0uF 400V Crosscap Capacitor : Jantzen 1.0uF 400V Crosscap Capacitor 027-910
Jantzen 10uF 400V Crosscap Capacitor: Jantzen 10uF 400V Crosscap Capacitor 027-932

OMishra will post BOM for Lightspeed Attenuator,suggestions welcome.
Note: Please verify all components with original BOM as I am not very good at Electronics.

Regards,
Sachin



[omishra]

Re: Pass B1 BOM

Sachin, Following substitutes will works without affecting audio.

Digi-Key - P1.0W-3BK-ND (Manufacturer - ERX-3SJ1R0)

For power inline resistor, please refer this.

Digi-Key - BC2076-ND (Manufacturer - BFC241671005)

For power supply shunt, please refer any of first 3 of these these. I suggest VISHAY Cap from these. These can be found locally if you agree. I used in my discrete audio power amp. Polypropylene metal film caps are common.

OMishra will post BOM for Lightspeed Attenuator,suggestions welcome.
Note: Please verify all components with original BOM as I am not very good at Electronics.

I will prepare it soon, apart from sinolex LDR, all can be availed locally. Only LDR are in audio path and hence will be imported more and matched for 10 quadruples(group of 4). Control circuit is not pricy hi-fi stuff. So no need to take trouble of importing. If you have different opinion then I will find all of them on element 14.

BOM for each PCB of Lightspeed Attenuator (LDR Volume Control)

5 X Connectors, 1X2MTA <- Can be avoided if wish to solder wires directly on PCB
4 X 100 ohm, 1/4W, 1% MFR
2 X 1K, Trimmer RTRIM64W
1 X 10uF,50V Cap
1 X 1uF,50V Cap
1 X 100K Stereo Potentiometer [No link]
1 X Voltage Regulator 7805 [No Link]

Most important part:
4 X Sinolex LDR NSL-32SR2
This we need to buy 60 and match closest 4x10 for each PCB.

Suggestions please!



[sachu888]

Hi all,
Final list of members for B1 and LDR volume control kit:

1.Capt Rajesh
2.Omishra
3.Santhosh
4.Sachin
5.Gopib
6.Josephjohnt
7.Audiodoc
8.Cmsajith
9.Stereorules
10.t.antony
11.Gobble
12.Jetlag

PM me for payment details.I will need some advance for ordering parts.

Regards,
Sachin



[sachu888]

Re: Pass B1 BOM

Sachin, Following substitutes will works without affecting audio.

For power inline resistor, please refer this.

For power supply shunt, please refer any of first 3 of these these. I suggest VISHAY Cap from these. These can be found locally if you agree. I used in my discrete audio power amp. Polypropylene metal film caps are common.


I will prepare it soon, apart from sinolex LDR, all can be availed locally. Only LDR are in audio path and hence will be imported more and matched for 10 quadruples(group of 4). Control circuit is not pricy hi-fi stuff. So no need to take trouble of importing. If you have different opinion then I will find all of them on element 14.

BOM for each PCB of Lightspeed Attenuator (LDR Volume Control)

5 X Connectors, 1X2MTA <- Can be avoided if wish to solder wires directly on PCB
4 X 100 ohm, 1/4W, 1% MFR
2 X 1K, Trimmer RTRIM64W
1 X 10uF,50V Cap
1 X 1uF,50V Cap
1 X 100K Stereo Potentiometer [No link]
1 X Voltage Regulator 7805 [No Link]

Most important part:
4 X Sinolex LDR NSL-32SR2
This we need to buy 60 and match closest 4x10 for each PCB.

Suggestions please!

Hi Om,
Thanks for taking initiative for LDR and regulated power supply.I could not able to find those 4 big PP caps required for B1 on Element14.Do you suggest any alternative?We would like to avoid importing from partexpress due to shipping cost and customs.

Regards,
Sachin



[captrajesh]

Hi Sachin,

Some of us who have participated in the Phone stage group buy already have your account details. Kindly post the amount required to be transferred.

Regards


Rajesh



[gobble]

I am busy as hell for last few days, ahvent even checked emails .... I will transfer money from my SwissBank account by tomorrow hopefully.

--G0bble



[Audiodoc]

Do inform when the money needs to be transferred for the group buy.



[sachu888]

Hi Sachin,

Some of us who have participated in the Phone stage group buy already have your account details. Kindly post the amount required to be transferred.

Regards


Rajesh

HI Capt.
Its INR 1000/-

Regards,
Sachin



[Audiodoc]

Can I get the banking details for the group buy and when are the tranfers starting.



[omishra]

Re: Pass B1 BOM

Hi Om,
I could not able to find those 4 big PP caps required for B1 on Element14.Do you suggest any alternative?We would like to avoid importing from partexpress due to shipping cost and customs.

Sachin,
It seems Jantzen from digikey is the best bet.
Look at element 14 alternatives.
2 X 1 uF, 630V Small Cap
2 X 10 uF, 630V Big Cap
All these are costing -
2 X 450
2 X 750
Total Rs 2400 + shipping per kit



[sachu888]

Re: Pass B1 BOM

Sachin,
It seems Jantzen from digikey is the best bet.
Look at element 14 alternatives.
2 X 1 uF, 630V Small Cap
2 X 10 uF, 630V Big Cap
All these are costing -
2 X 450
2 X 750
Total Rs 2400 + shipping per kit

Hi Om,
Nelson Pass has suggested three of these instead of 1uf caps Digi-Key - BC2076-ND (Manufacturer - BFC241671005)

http://www.passdiy.com/pdf/B1 Buffer Preamp.pdf

Now we need to find only 2 big 10/11/12uf PP caps,any suggestion on element 14.

Regards,
Sachin



[omishra]

What about this PARMAR 10uF, 250V



[sachu888]

What about this PARMAR 10uF, 250V

This looks very different(mounting pattern).

Edit:
How about this:
VISHAY ROEDERSTEIN|MKT1813610255GQ|CAPACITOR, 10UF, 250V | element14 India

Capacitance Tolerance: 10% as compare to +/- 5% of Zantan caps

Regards,
Sachin



[omishra]

This looks very different(mounting pattern)

Sachin, it is polypropylene capacitor with radial (Vertical) mounting lead. Our PCB expects axial (horizontal) mounting. We can lay the capacitor horizontal in center of required space on PCB. Insert the lead closer to PCB into soldering pad. Bend another lead over the cap toward bottom and insert in another PCB soldering PAD. Thus mounted it horizontally in center of required space. Its not that big problem.

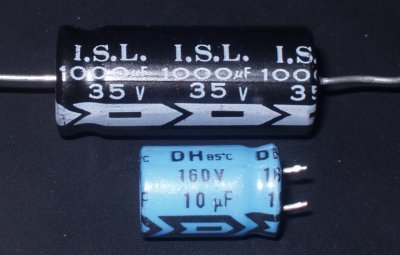

Axial v/s radial leads

How about this:
VISHAY ROEDERSTEIN|MKT1813610255GQ|CAPACITOR, 10UF, 250V | element14 India
Capacitance Tolerance: 10% as compare to +/- 5% of Zantan caps

This is polyester capacitor, not good for audio signal. We need polypropylene (PP) capacitors, that's why I suggested that.



[gobble]

This is polyester capacitor, not good for audio signal. We need polypropylene (PP) capacitors, that's why I suggested that.

Yes please, Bees wax, Paper in Oil, PolyPropelene, Teflon ...
I deserve only exotic materials that is finer than a woman's lingerie. hyeah:

I refuse to settle for less

--G0bble



[omishra]

Yes please, Bees wax, Paper in Oil, PolyPropelene, Teflon ...
I deserve only exotic materials that is finer than a woman's lingerie. hyeah:

I refuse to settle for less

--G0bble

hyeah:

BTW original BOM states use of Polyster IMO. Its my mistake to read polyprop in all places. Sachin's suggestion holds true.



[sachu888]

Actually pass has suggested 10uf Polyester caps from AXON.We can use 11uf(as value is not critical) Axon available at part connection @ $2.83
Error in Form!

Regards,
Sachin



[omishra]

Power Supply for Pass B1 Buffer, CNC Phono and Lightspeed Volume Control

We made some progress. It seems no modification will be required for this.
Thanks to FM quad for his help and suggestions.
Features:

1. Input transformer secondary voltage 20-0-20, 500mA or 22-0-22, 500mA
2. Rectifier diodes MUR8xx fast switching diode.
3. One single PS for Pass B1 and Lightspeed Volume Control
4. One dual PS for CNC Phono.
5. Input C-R-C ripple filter at 31Hz
6. Output L-C-L noise filter at 1590 Hz
7. Output voltage tunable from 1.5V to 25V output
8. Size: 4" X 3" single sided PCB
9. Budget not calculated yet but within Rs 1-1.2K (PCB & coil prices are known yet)



[captrajesh]

Wow, one power supply for all the three circuits i.e. B1 Buffer pre, LDR & CNC phono stage. Sounds terrific.:yahoo:



[sachu888]

Power supply

Hi all,
I have ordered 12 pairs of matched JFETs from Spencer(DIY audio member,Hong Kong).I will order remaining parts for B1 and LDR tomorrow from Element14.Om/Prasad has also designed a regulated power supply for B1 and LDR.It will cost INR 700(approx) with locally available components.Please let me know how many members are interested in power supply as I need to order PCBs for this.

Regards,
Sachin
